Toyota Yaris GR 1.6 Oil Cooler for Toyota Yaris GR

This will fit both left and right hand drive vehicles

Due to the Toyota Yaris GR’s huge popularity as a fast road car, it was only logical that it is now being used as a capable track day vehicle. However, the difference of spirited road use or hard track laps does highlight some chinks in the Toyota’s usual reliable armour. Cooling being the most criticized area both with inlet air temperatures and in this case engine oil temperatures. FMOC12 has been developed with the same engineering expertise from our direct involvement within the BTCC and Mini Challenge race series, where we have provided race proven cooling packages. These see extensive driving over the race season calendar, and we have directly transferred our knowledge from this over to our road going products, so we are proud to give the Yaris GR the same motorsport treatment. By doing this, you can lower your oil temps on and off the track whilst providing a product that does not skimp on quality, so much so that it is backed by our Forge Lifetime Guarantee*

FMOC12 has its inlet and outlets placed in the correct position for optimum flow. When oil coolers are fitted upside-down this can lead to cavitation (air locks) within the system, which over a prolonged period of time can lead to engine fatigue and potentially internal component damage due to insufficient engine lubrication.The research and development team spent countless hours researching the best possible configuration of cooler fitment for the Yaris GR with all aspects of the design being considered. This led to us developing a bespoke fabricated item that would not only be easy to install but also be the best performing product currently on the market.

Unlike many oil cooler kits, the FMOC12 keeps the factory oil to water cooler in position. This essentially doubles your engines oil cooling. We’ve also developed the kit to use a bespoke laser cut aluminium bracket which makes for perfect fitment to the Toyota Yaris GR crash bar. Supplied with the performance part kit are 2x pre-assembled, high-quality double braided AN-8 oil lines.

The Forge oil cooler is available in three colour choices, stealth black for the OEM look, raw motorsport alloy. or performance red, for a racing parts feel.



During our time developing new performance products, we found a significant floor with the vehicle especially when tuned. Oil temperatures can climb to dangerous levels when on track or when driven hard in hotter climates. Rising oil temperatures will result in only one outcome, a reduction of sufficient lubrication of your engines internal components. The location of the car oil cooler radiator at the front of the vehicle’s radiator grill allows for superior air flow and during our development of this product, we have seen oil temperatures reduced significantly. Therefore, the FMOC12 is a must have product for the keen driver to protect their vehicle performance and longevity.

We’ve incorporated a thermostat that is built into the oil cooler sandwich plate, this has been set to open at 85C as this was observed to be the optimal working temperature of the oil cooler when testing, this means the engine is working at its most efficient oil temperature range however hard you push the vehicle.

This GR Yaris oil cooler kit is a complete bolt on package and in turn means it is also fully reversable if required. It is also supplied with a full set of comprehensive instructions.

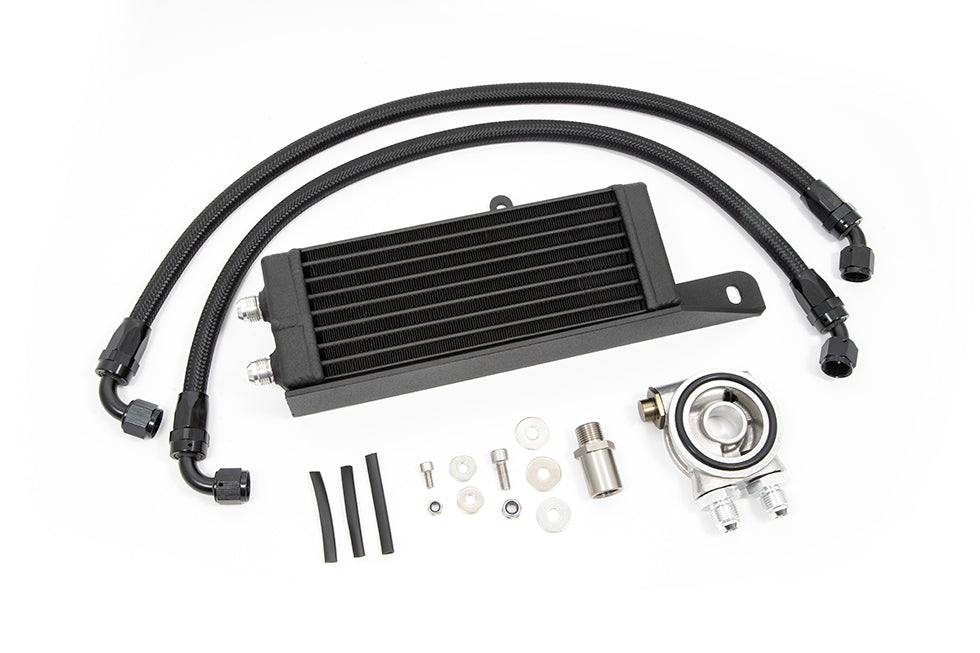

In the box:
1x Forge Aluminium sandwich plate
1x Twin pass oil cooler
2x Oil lines
All the fixings required
