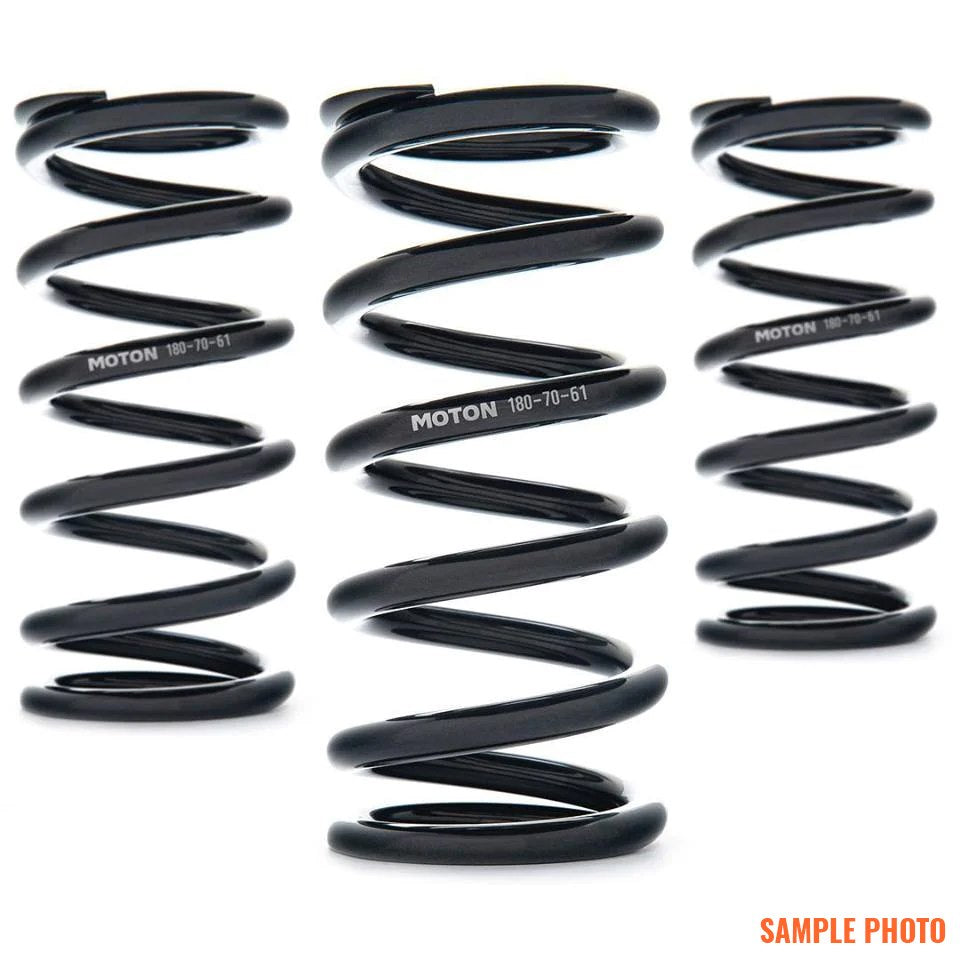

• MOTON Linear Racing Spring, 130 mm x 61 mm ID (Single)
  • MOTON Linear Racing Spring, 130 mm x 61 mm ID (Single) - image 2
  • MOTON Linear Racing Spring, 130 mm x 61 mm ID (Single) - image 3
1 3

AST-130-50-61

Moton

MOTON Linear Racing Spring, 130 mm x 61 mm ID (Single)

MOTON Linear Racing Spring, 130 mm x 61 mm ID (Single)

£94.80 GBP
£94.80 GBP
Sale Sold out
VAT included. Free UK shipping on orders over £200. Standard rates apply below this amount.
🚚 Free UK shipping on orders over £200
Spring rate

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

A MOTON linear racing spring, 130 mm long with a 61 mm inside diameter, in 26 rates from 50 to 400 N/mm. MOTON make their racing springs from extreme high-tensile chrome-silicon wire, coiled on a Wafios compression coiling machine, then pre-blocked and protected against corrosion to OEM specifications. The table below gives each rate's block length, the force at block and its travel.

  • 26 rates, 50 to 400 N/mm, linear
  • 130 mm free length, 61 mm inside diameter
  • Extreme high-tensile chrome-silicon wire, Wafios-coiled
  • Pre-blocked, with OEM-specification corrosion protection

Check before you order

  • These springs do not fit original (OEM) top mounts.
  • Sold as a single spring: order two for a pair.
Part numbers AST-130-50-61 to AST-130-400-61 (see the rate table)
Free length 130 mm
Inside diameter 61 mm
Spring rates 26 rates, 50 to 400 N/mm
Type Linear rate
Material Extreme high-tensile chrome-silicon wire

Rate table

Rate (N/mm) Rate (lb/in) Block length (mm) Force at block (N) Travel to block (mm) Part number
50 286 47 4150 83 AST-130-50-61
60 343 50 4800 80 AST-130-60-61
70 400 50 5600 80 AST-130-70-61
80 457 54 6080 76 AST-130-80-61
90 514 54 6840 76 AST-130-90-61
100 571 59 7100 71 AST-130-100-61
110 628 60 7700 70 AST-130-110-61
120 685 60 8400 70 AST-130-120-61
130 742 62 8840 68 AST-130-130-61
140 799 63 9380 67 AST-130-140-61
150 857 64 9900 66 AST-130-150-61
160 914 66 10240 64 AST-130-160-61
170 971 68 10540 62 AST-130-170-61
180 1,028 70 10800 60 AST-130-180-61
190 1,085 67 11970 63 AST-130-190-61
200 1,142 69 12200 61 AST-130-200-61
220 1,256 73 12540 57 AST-130-220-61
240 1,370 73 13680 57 AST-130-240-61
260 1,485 78 13520 52 AST-130-260-61
280 1,599 74 15680 56 AST-130-280-61
300 1,713 79 15300 51 AST-130-300-61
320 1,827 76 17280 54 AST-130-320-61
340 1,941 81 16660 49 AST-130-340-61
360 2,056 78 18720 52 AST-130-360-61
380 2,170 84 17480 46 AST-130-380-61
400 2,284 81 19600 49 AST-130-400-61
