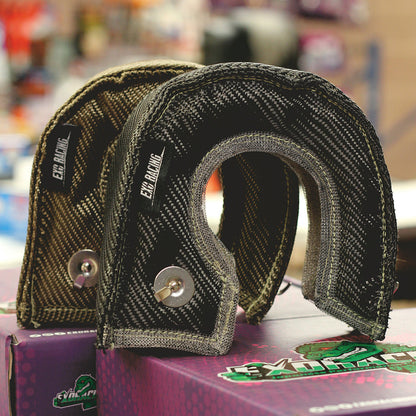

Exoracing Turbo Blanket V3

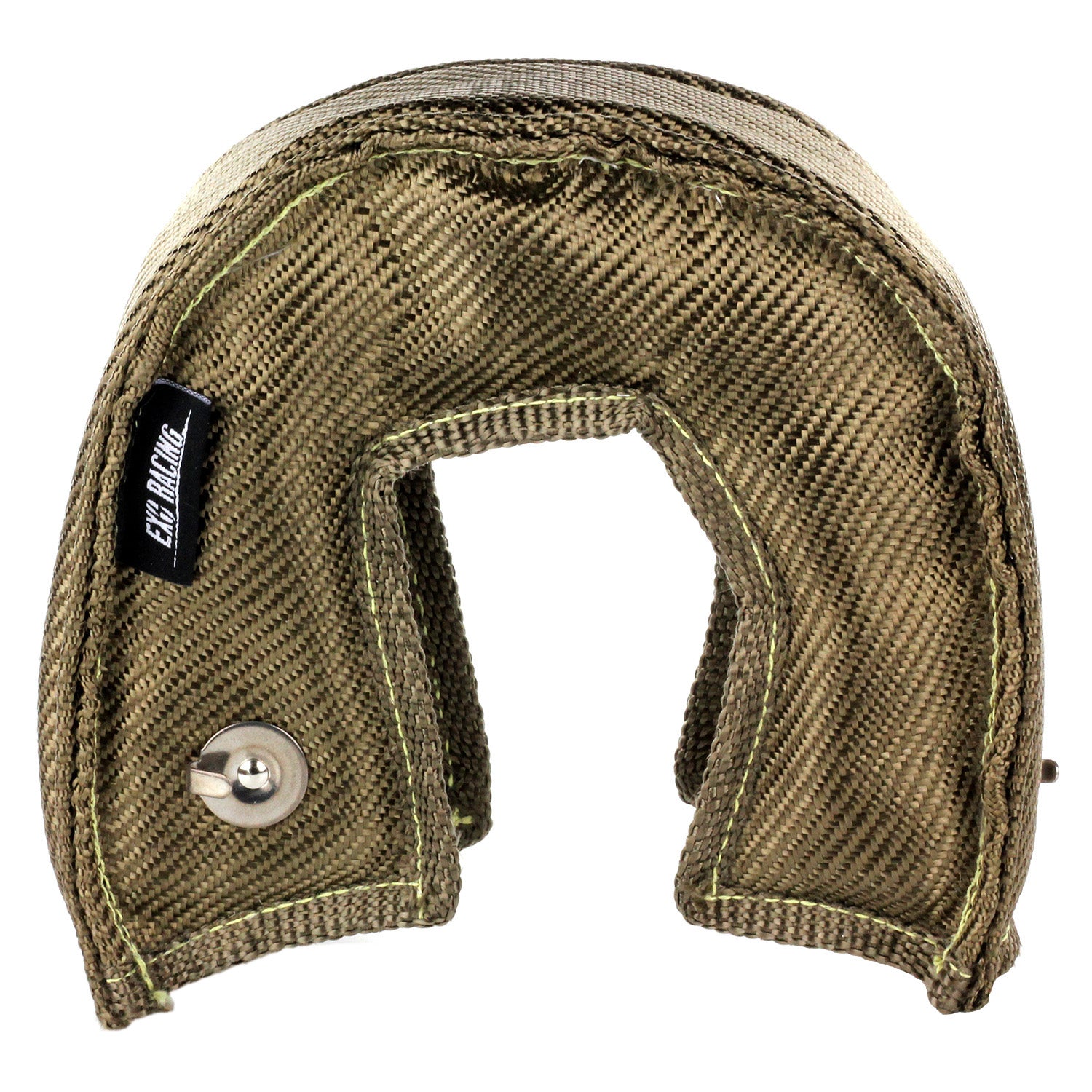

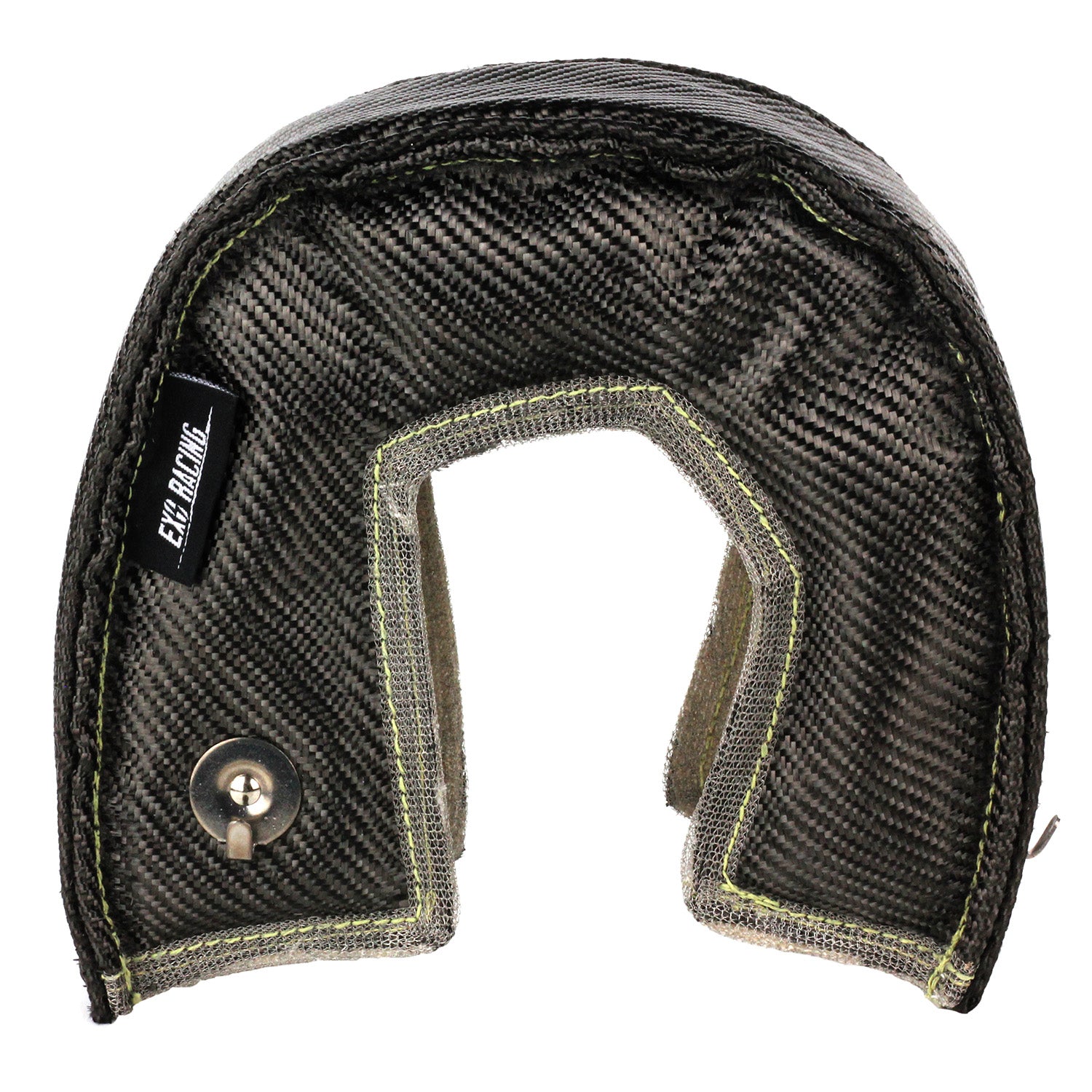

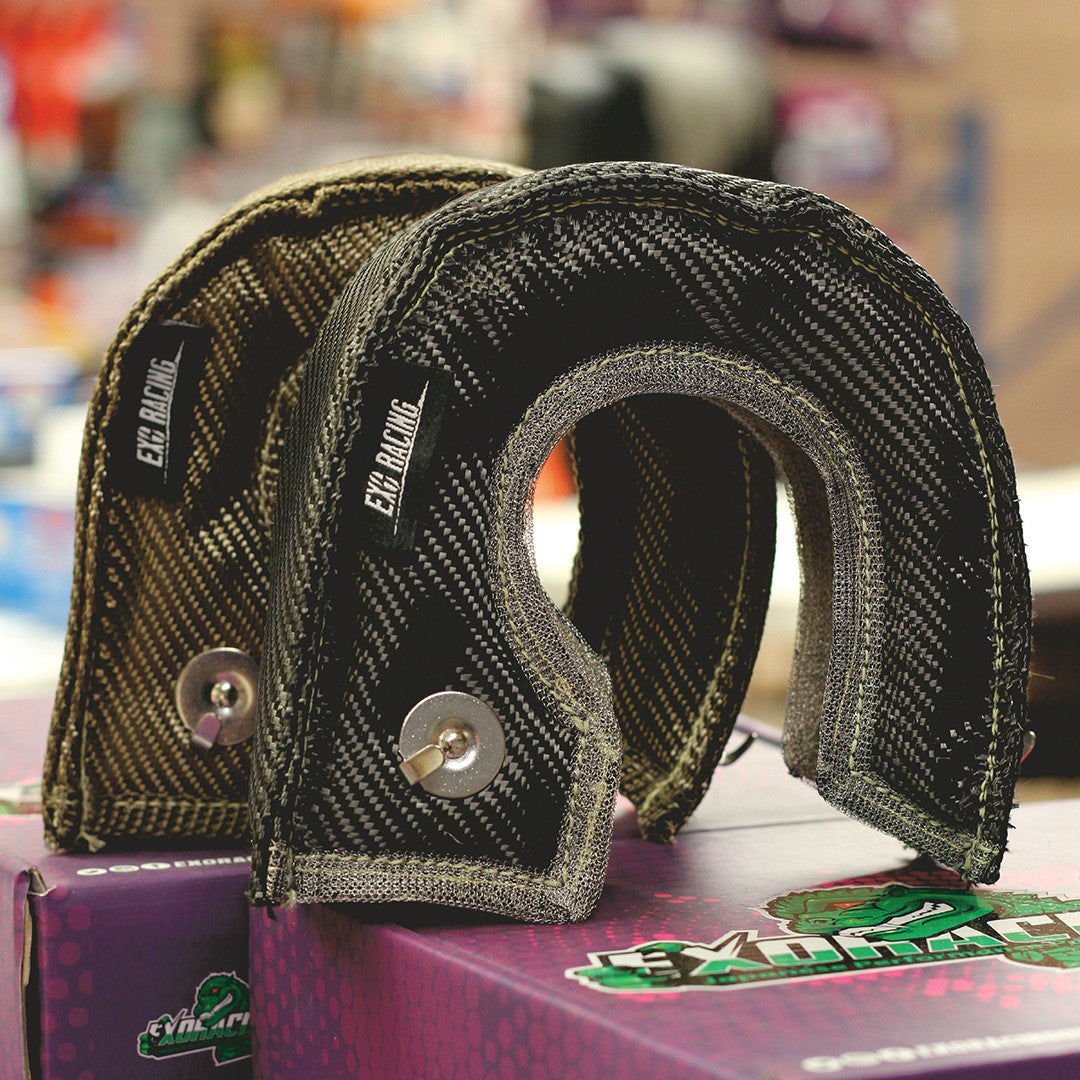

A four-layer turbo jacket for the hot side of a turbocharger, built with a carbon or titanium weave exterior, a silica insulation wool centre and a stainless steel wire mesh interior. It carries a working temperature of up to 1200°C / 2100°F and is offered in T25, T3 and T4 sizes to suit the turbo frame size and turbine housing measurements.

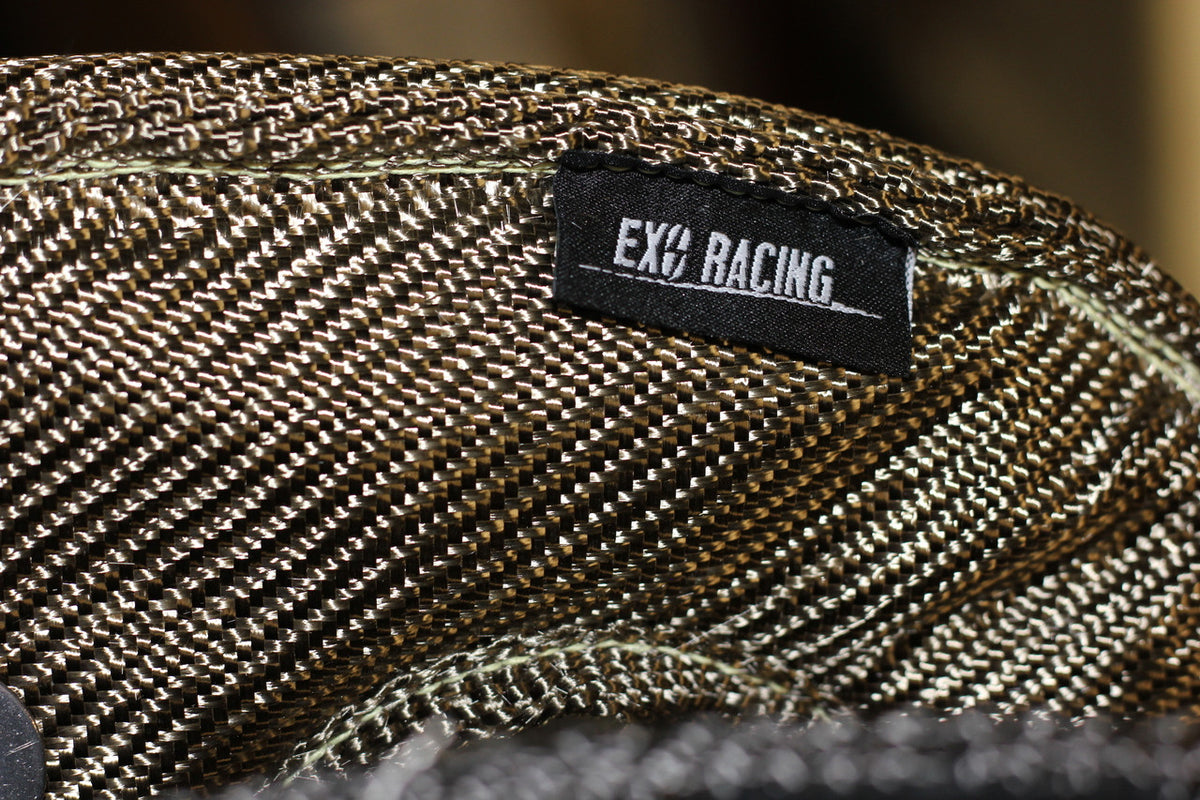

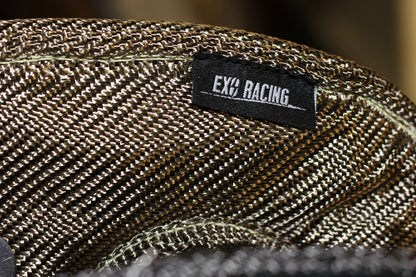

• Four-layer build: carbon or titanium weave exterior, silica insulation wool centre and stainless steel wire mesh interior, with a working temperature up to 1200°C / 2100°F.
• Three sizes: T25 at roughly 17in inner circumference and 2.25in inner width, T3 at roughly 19in and 3.0in, and T4 at roughly 22in and 3.5in.

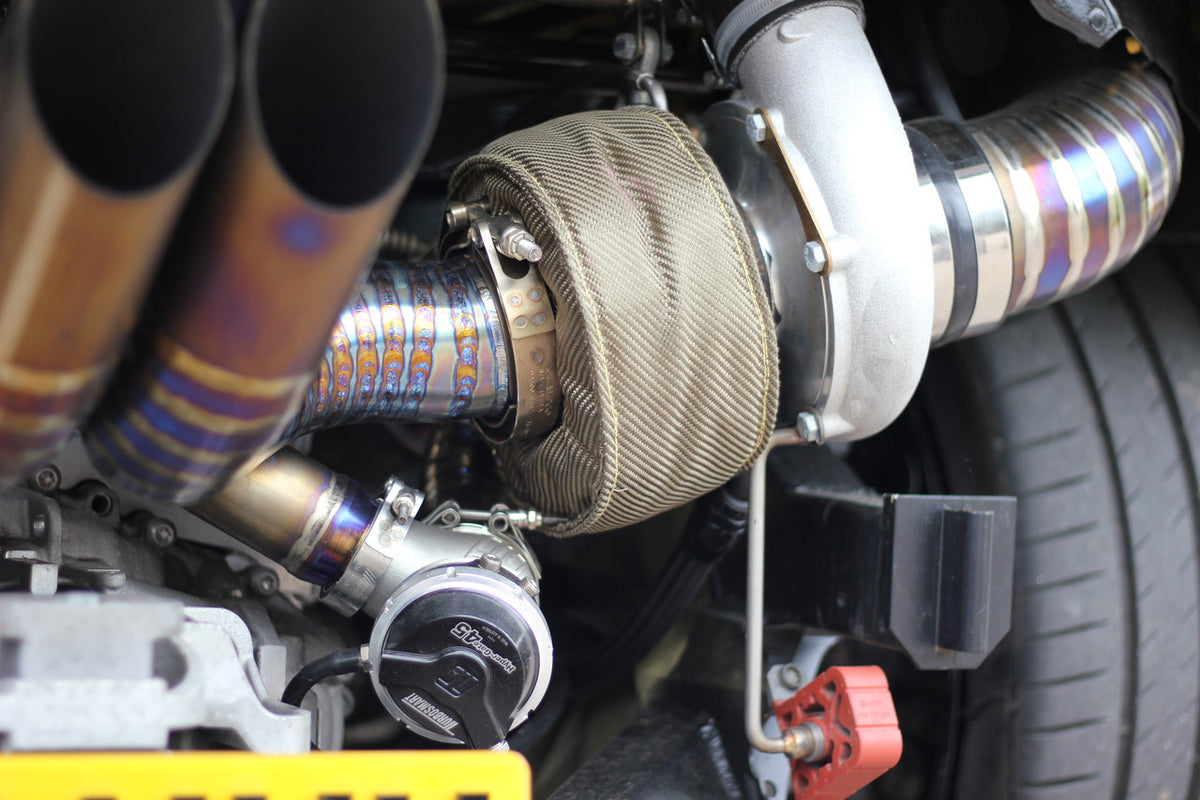

• Helps contain heat at the turbocharger hot side, which reduces radiant heat around the turbo, and helps protect hoses, wiring, paintwork, intake pipework and nearby fluid lines.
• Keeping more heat inside the turbine housing can help the turbo system behave more consistently during repeated pulls, long sessions or high load use.

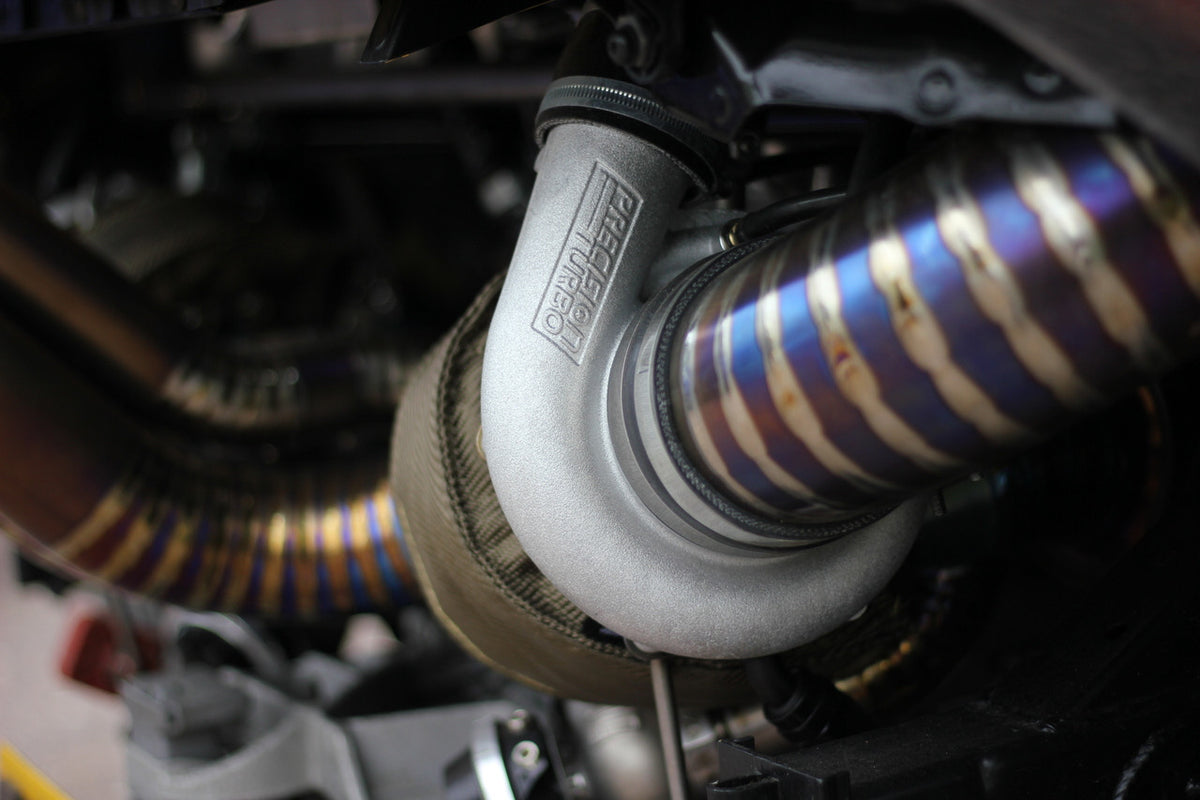

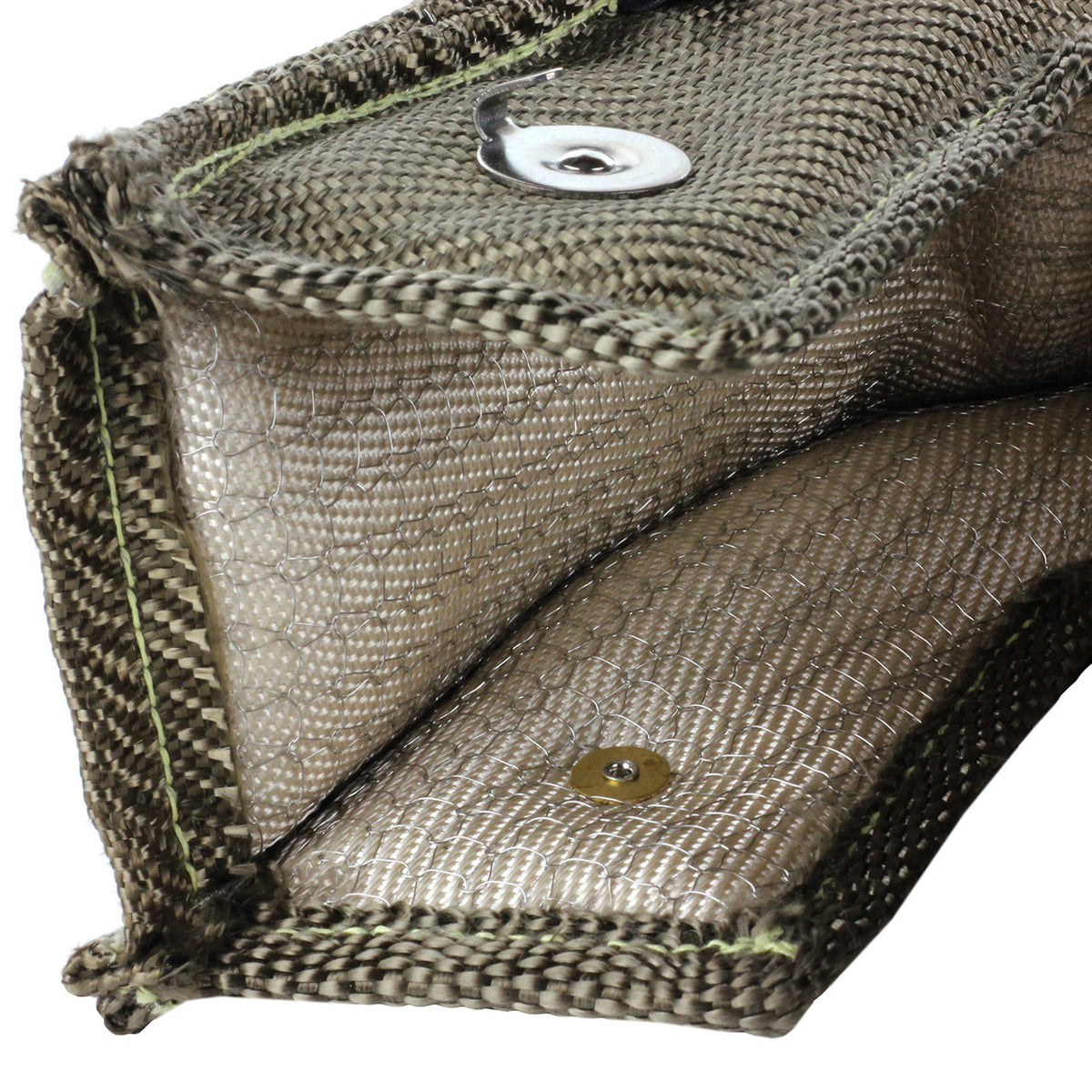

• Supplied as one blanket with two stainless steel spring fasteners; stainless steel hook anchors and the fasteners hold it around the turbine housing.

Check before you order

• Can be used on many V-band turbo setups, though the fit may not hug the housing as tightly as a traditional flanged turbocharger
• Light smoke during the first few heat cycles can be normal as moisture and manufacturing residue burn off; if smoke is heavy, smells of oil or fuel, or does not stop, switch the car off and inspect the area
• The main fire risk comes from contamination such as oil, fuel, coolant, power steering fluid or other flammable liquids soaking into the blanket
• Must not be fitted over damaged, leaking or unsafe turbo setups
• A blanket that is too small may not cover the turbine housing properly, while one that is too large can sit loose and move around once the car is running

Specifications from Exoracing

Fitting notes from Exoracing

• Leak-free setup required: Must only be fitted to a clean, leak-free turbo setup; check for oil, fuel, coolant or power steering fluid leaks before installation

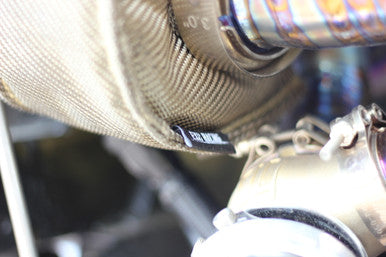

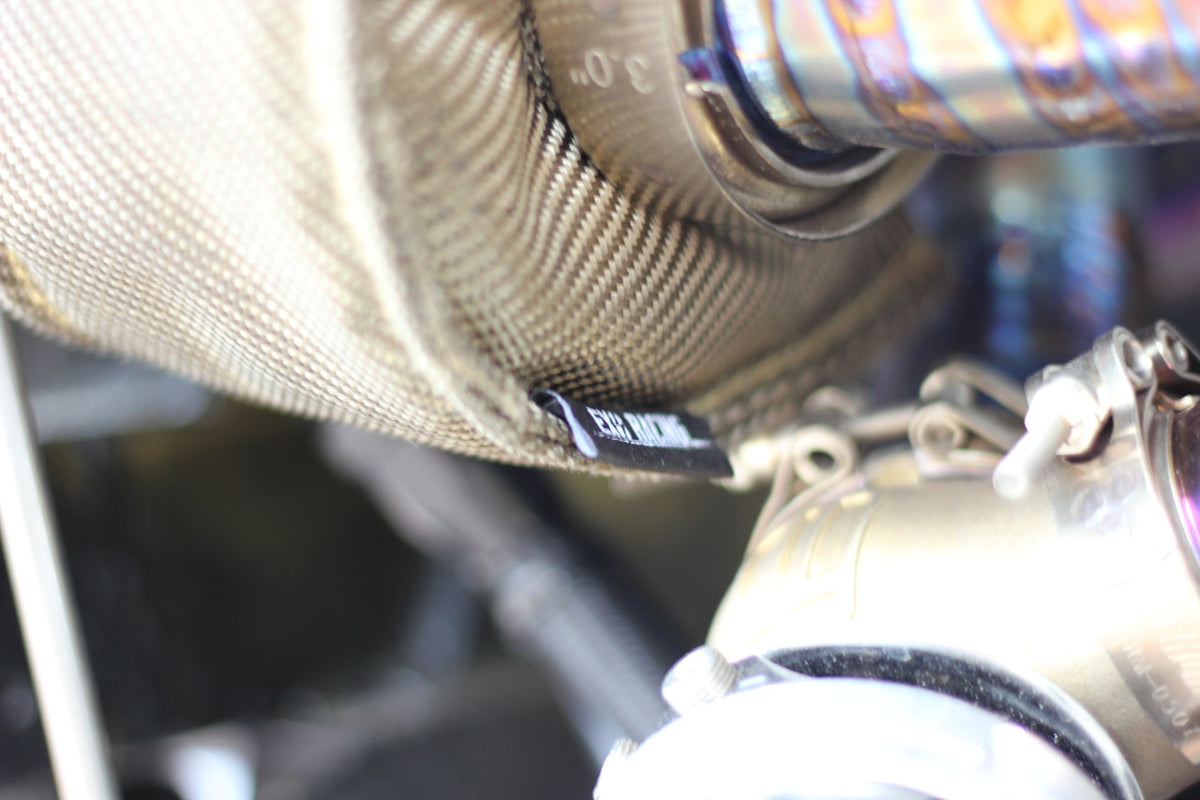

• Fitting method: Fits over the turbine housing of the turbocharger and secures using the supplied stainless steel spring fasteners
• Fit when cold: Install only when the turbocharger is completely cold
• Wear gloves: Gloves should be worn to help prevent skin irritation from heat-resistant fibres
• Do not cover: Must not cover actuator arms, wastegate linkages, compressor housings or moving parts
• Fit to hot side: Place the blanket over the hot side of the turbo, not the compressor side
• Recheck after heat cycle: Recheck the blanket and spring fasteners after the first heat cycle once everything has cooled
• Installation difficulty: Beginner-friendly if access is good; some engine bays may require intake pipework, heat shields or brackets to be moved for better access
• Professional installation: Professional installation is recommended if access is poor or the fitter is not confident working around turbo components
• Measure before ordering: The turbine housing should be measured before ordering so the blanket sits snugly without being forced or left loose
