Exoracing T4 Turbocharger Gasket

A T4 turbo to manifold flange gasket from Exoracing, offered in two materials: pressed 304 stainless steel at 0.5mm thick, or perforated aluminium composite at 2mm thick. Both share the same 82mm horizontal and 69mm vertical bolt hole centres, so the choice comes down to material, thickness and bolt hole size.

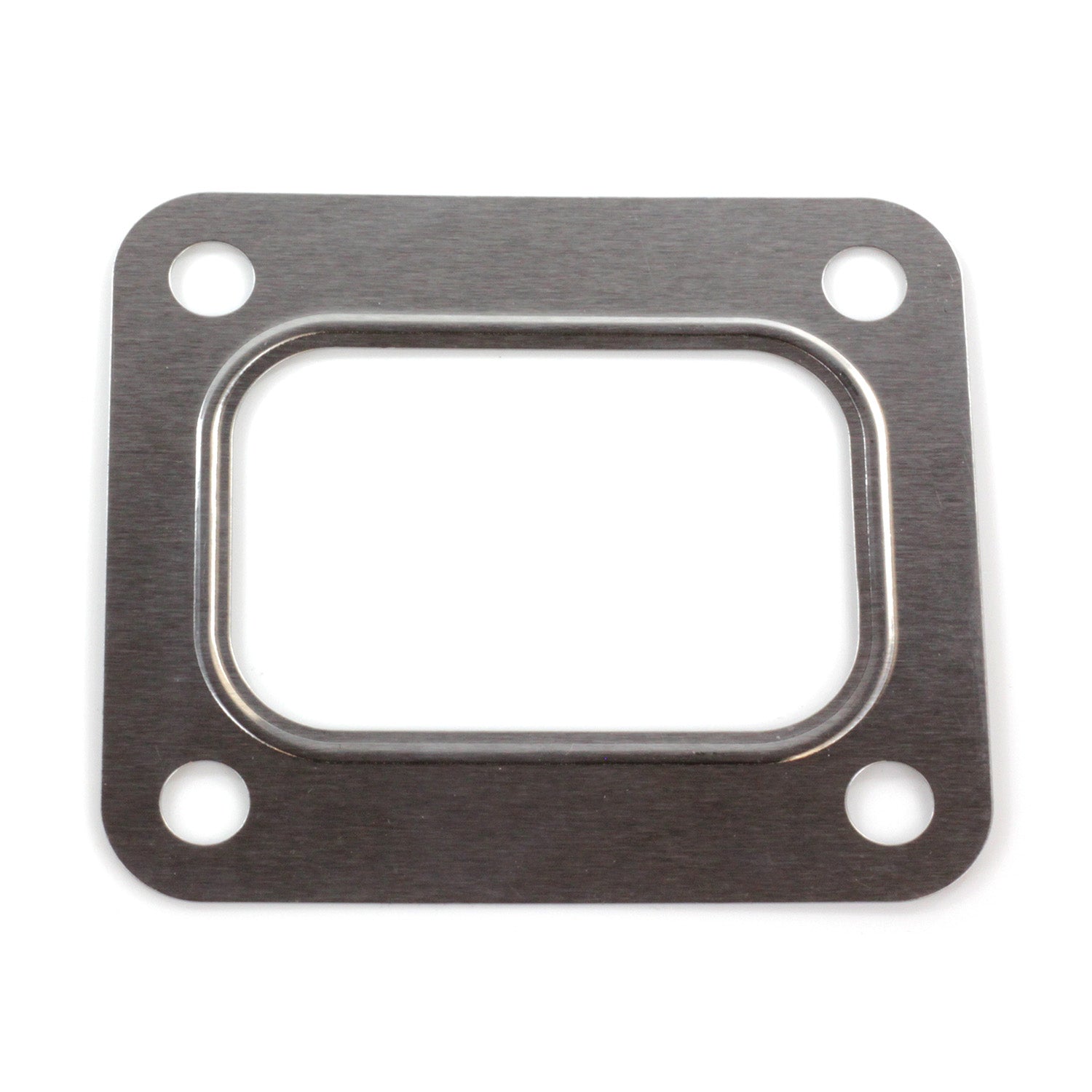

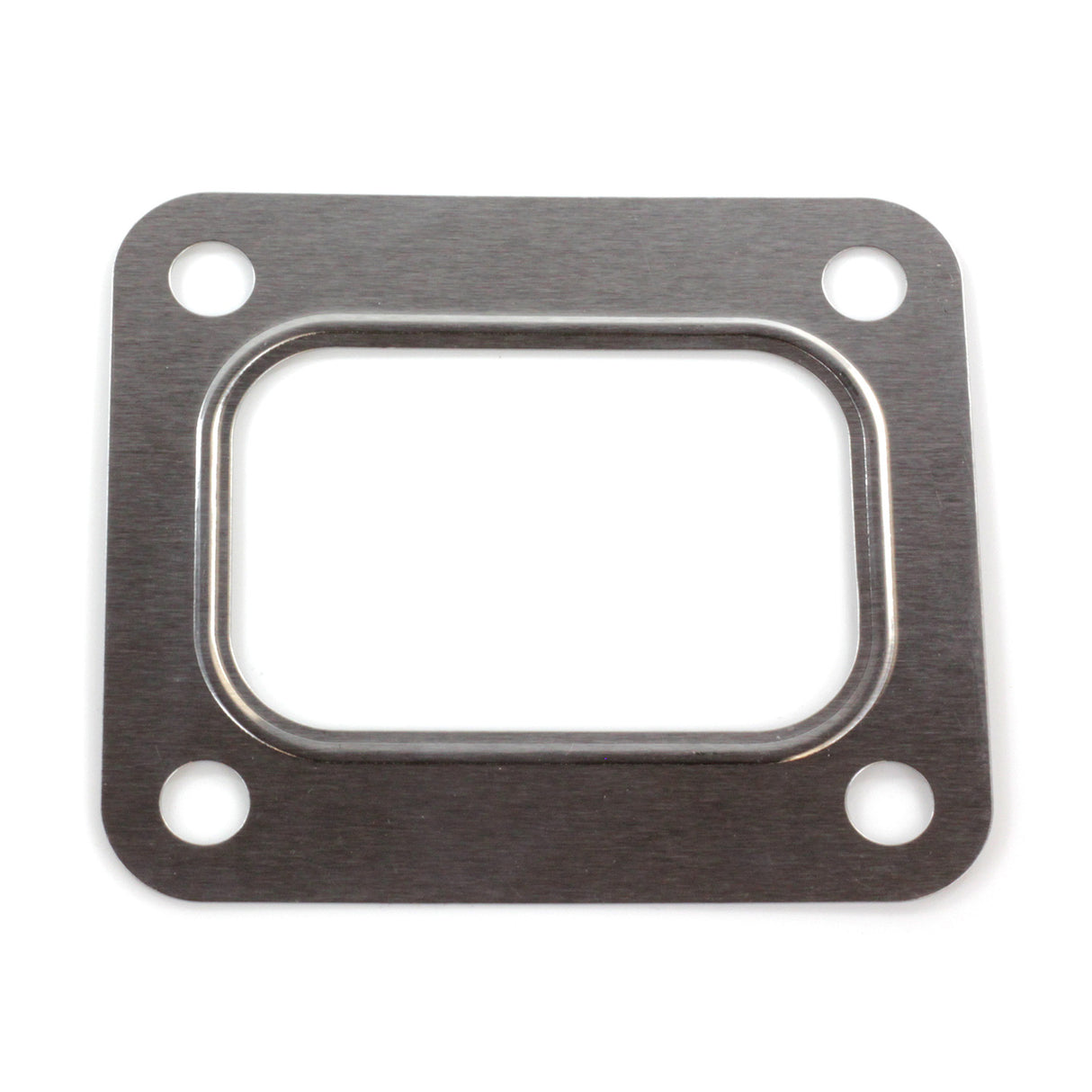

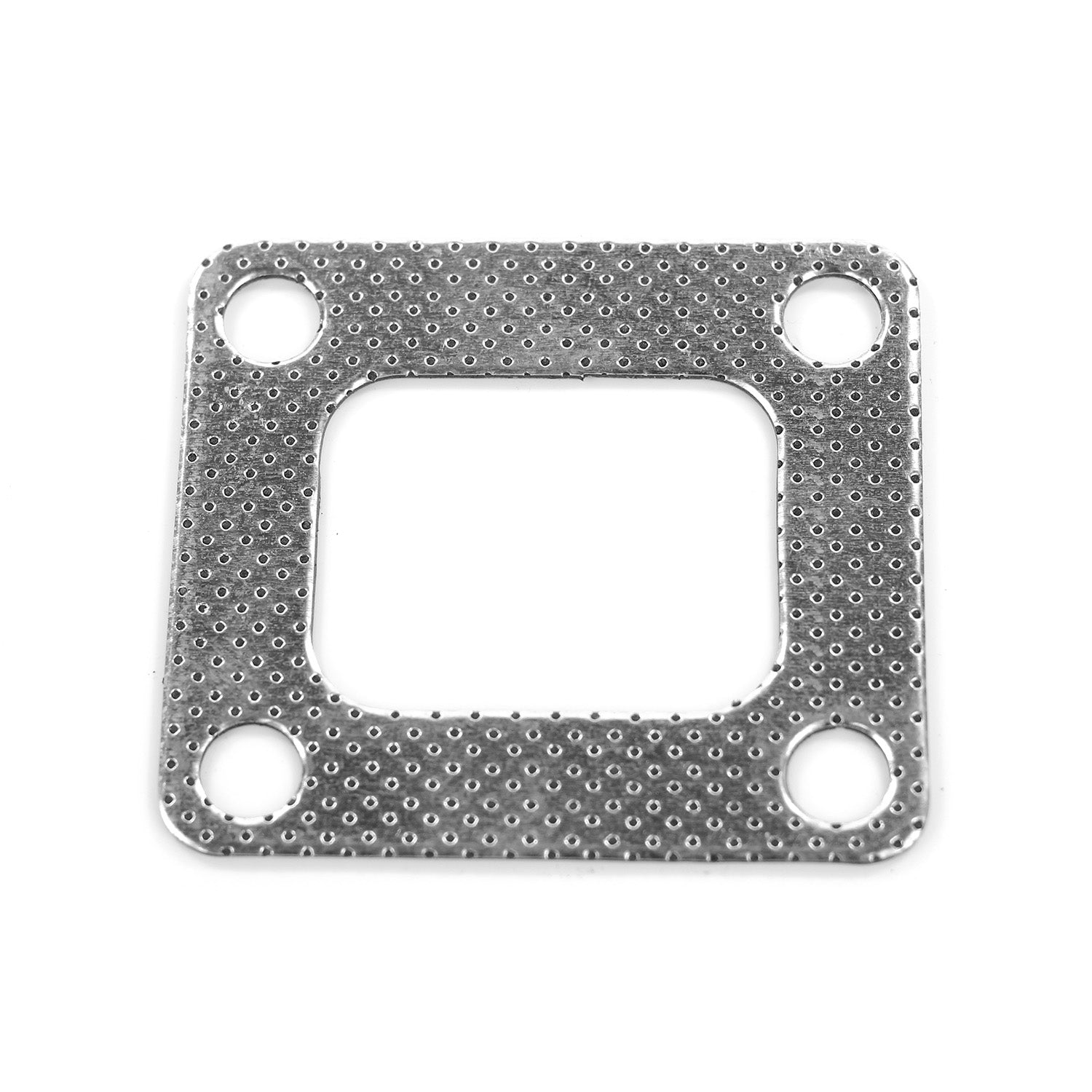

• Choose pressed 304 stainless steel at 0.5mm thick, or perforated aluminium composite at 2mm thick, depending on the material and thickness you want between the flanges.
• Bolt hole centres measure 82mm horizontally and 69mm vertically on both versions; bolt hole diameter is 10.5mm on the stainless and 14mm on the composite.
• Overall size is 108mm long by 95mm high in stainless, and 110mm by 93.5mm in composite, with a weight of 23g.
• Designed to seal two flanges together, such as the turbo to the manifold, preventing gas from escaping and maintaining the engine's optimal performance and boost level.
• Supplied as one Exoracing T4 turbocharger gasket, which the manufacturer states is precisely cut and pressed to meet OEM specifications.

Specifications from Exoracing

Fitting notes from Exoracing

• Installation: Professional installation is always recommended
• Flange preparation: Flanges must be clean and flat to prevent the gasket from blowing out
• Resurfacing flanges: Resurfacing the two mating flanges is recommended when replacing a blown or distorted gasket, to ensure an optimal seal
• Replacement interval: Changing the gasket every time the turbo is removed is recommended
• Torque: Torque the turbo to manifold bolts to factory settings, then run the car through a few heat cycles and retorque the manifold bolts to factory specifications
• Before fitting: Check the technical specification table to ensure the T4 gasket is correct for the application
