Exoracing AN10 Turbo Oil Drain Flange Kit

A CNC machined billet aluminium drain flange for the oil return side of a turbocharger, with an AN10 threaded centre hole. It comes in 40mm or 51mm centre-to-centre options and is supplied with an oil drain gasket and two M8x1.25x20 cap head bolts. The base is 8.5mm thick and the flange stands 28mm tall and 25mm wide.

• Machined from T6061 billet aluminium, with an 8.5mm thick base that is said to help reduce the risk of flange distortion.
• The centre hole is threaded for AN10 oil drain fittings, and the flange is designed to connect the oil return side of a turbocharger to an AN10 oil drain system.
• Two centre-to-centre options: 40mm or 51mm. The 40mm kit measures 58mm long and weighs 54g; the 51mm kit is 70mm long and weighs 63g.

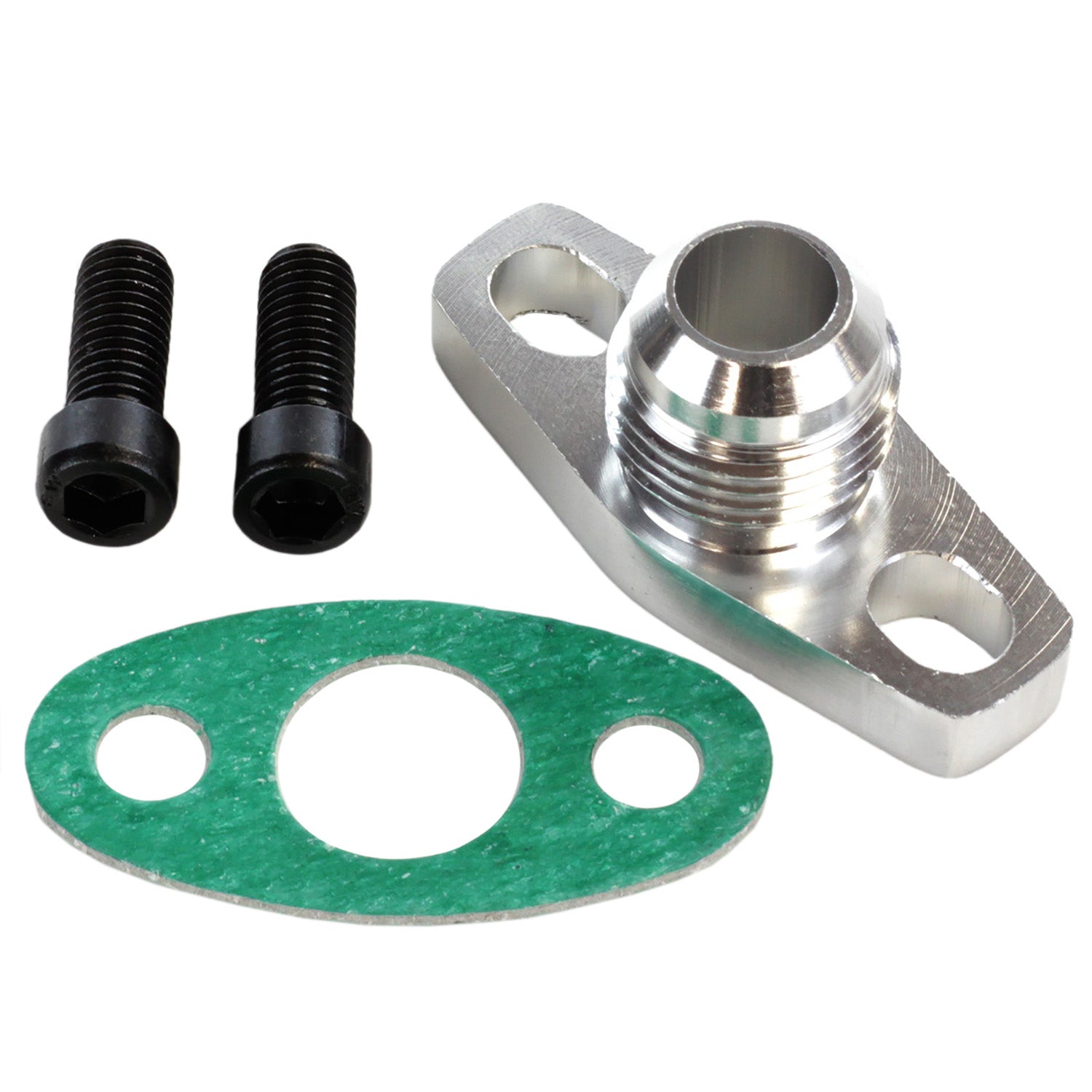

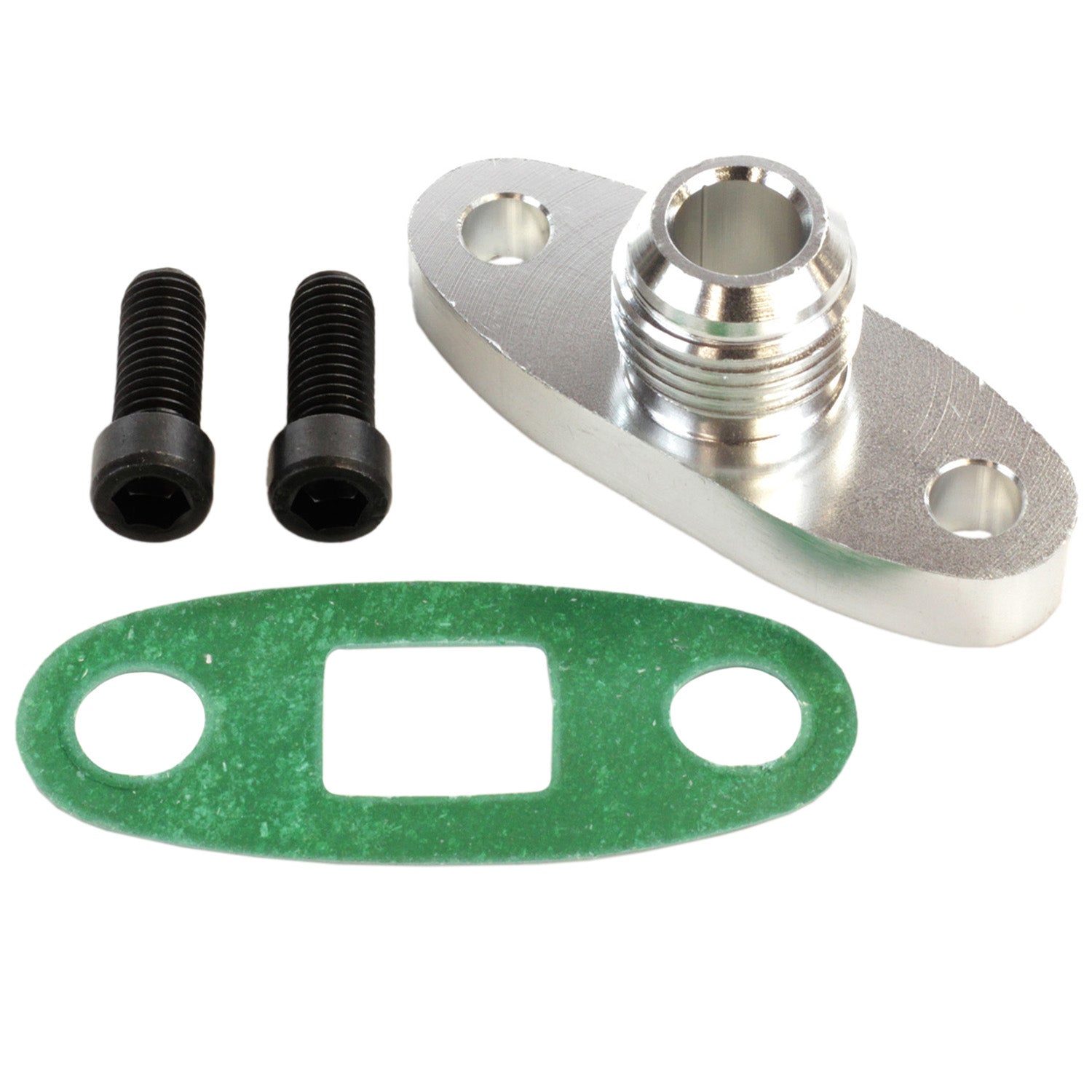

• Supplied as one AN10 turbo oil drain flange, one oil drain gasket and two M8x1.25x20 cap head bolts.
• Commonly used on aftermarket GT25, GT28, GT30 and GT35 style turbocharger setups where the bolt spacing matches.

Check before you order

• The listing includes the drain flange kit, gasket and bolts; the AN10 return fitting is not included
• Measure the bolt-hole centre distance on the oil drain side of the turbo before ordering and choose 40mm or 51mm to match, and ensure the oil drain line and fitting setup is AN10 compatible

Specifications from Exoracing

Fitting notes from Exoracing

• How to measure: Measure from the centre of one oil-drain mounting hole to the centre of the other; do not measure from the outside edge of the holes
• Professional installation: Professional installation is recommended
• Cool before fitting: Let the turbocharger and exhaust area cool fully before starting work
• Gasket fitting: Place the new oil drain gasket between the turbo and the flange, then install the supplied M8x1.25x20 cap head bolts and tighten to the turbo manufacturer's specification
• Drain routing: Connect the AN10 oil drain fitting and line so the drain route falls smoothly without kinks or high spots
• Leak check: Recheck the drain flange for leaks after the first few heat cycles
