SKU:ACU-R2011S

AST Suspension

AST Coilovers for Renault Megane 4 RS & Trophy (2017-2021)

Q: Does it fit the Megane 3 RS?

No. Each Megane RS generation has its own AST kit, listed separately.

Q: Which series suits a road car?

AST's own guide points a car used on the road, or on the road with the odd track day on road tyres, to the 5100 series. The 5100 Street TCO keeps the original top mounts; the Street Performance TCO adds camber-adjustable ones at the front.

Q: What is the difference between the 5200 and 5300?

Both have separate compression adjustment and external reservoirs. The 5300 splits compression into low-speed and high-speed adjusters, for full race use.

£2,508.00 GBP

Sale Sold out

VAT included. Free UK shipping on orders over £200. Standard rates apply below this amount.

🚚 Free UK shipping on orders over £200

Series 5100 Street TCO 5100 Street Performance TCO 5200 2-Way 5300 3-Way

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Coilovers for the Megane 4 RS and RS Trophy, 2017 to 2021. AST list four kits: the 5100 Street TCO, the Street Performance TCO with camber-adjustable front top mounts, and the 5200 2-Way and 5300 3-Way motorsport kits with external reservoirs.

Four series: 5100 Street TCO, Street Performance TCO, 5200 2-Way and 5300 3-Way
Megane 4 RS and RS Trophy, 2017 to 2021
Coilovers front and rear, with a 12-position rebound adjuster
5200 and 5300: separate compression adjustment and external reservoirs

Choose your series

Every AST damper is a monotube: nothing inside can aerate or foam, which AST say keeps the valving responsive.

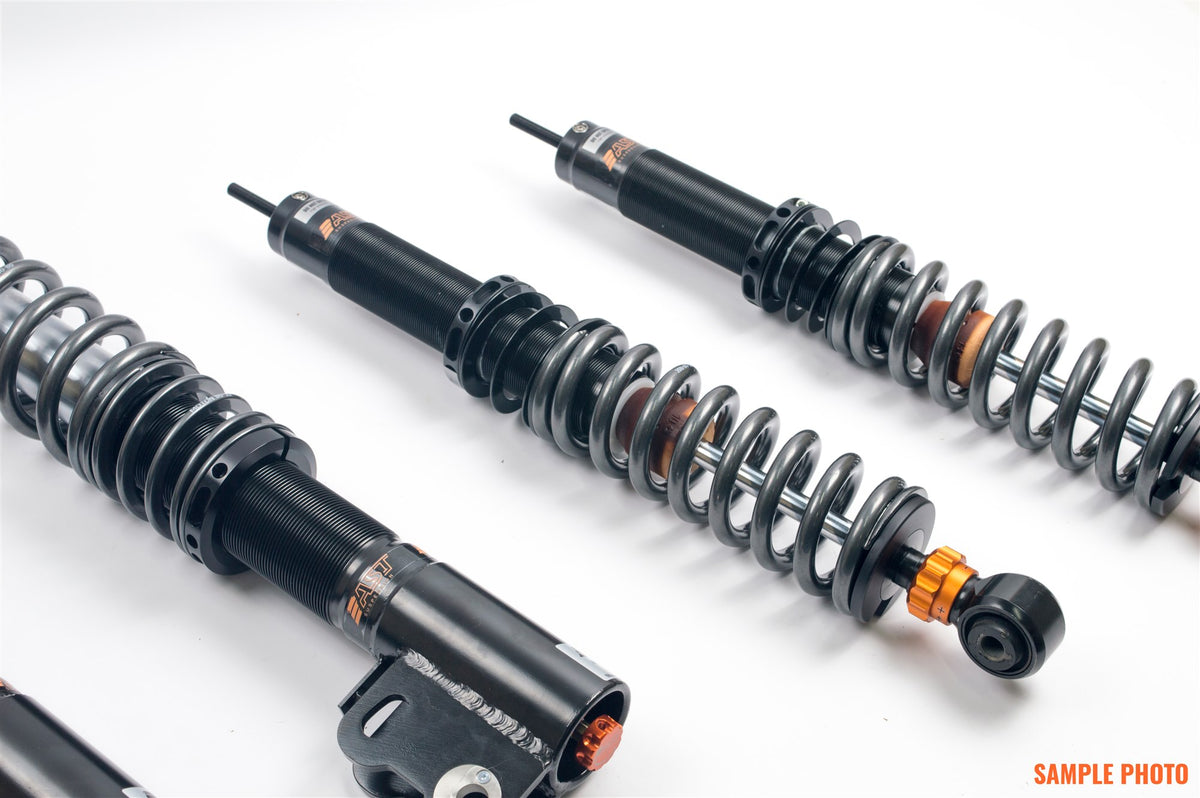

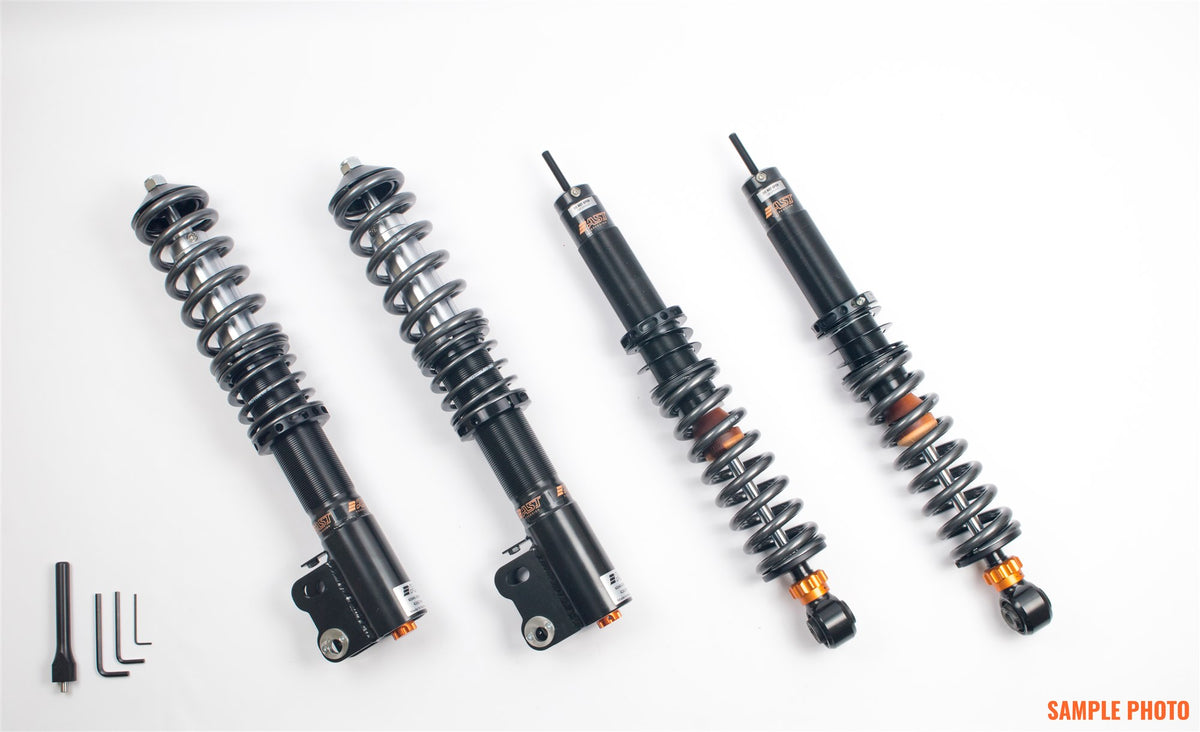

5100 Street TCO, coilovers front and rear (AST ACU)

The 5100 Street kit in TCO form: inverted monotube coilovers at the front and the rear, adjustable for rebound damping and ride height. Springs come in the kit, which works with the car's original top mounts. The rebound adjuster has 12 positions, and the dampers can be rebuilt.

AST part number: ACU-R2011S

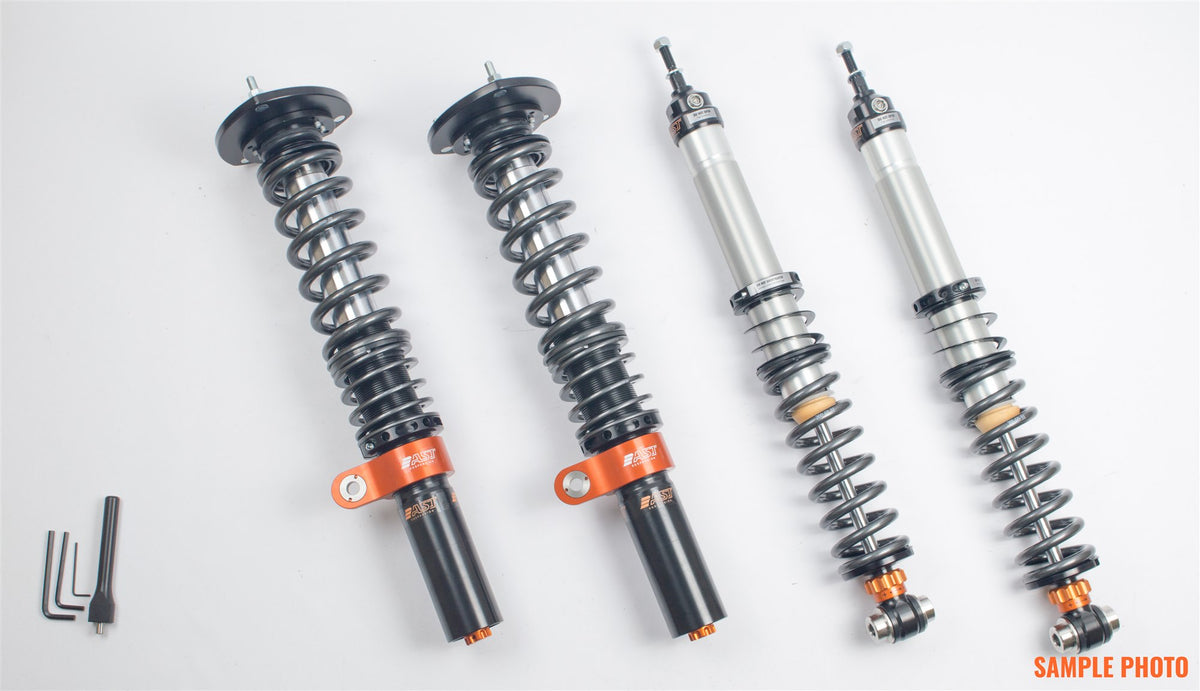

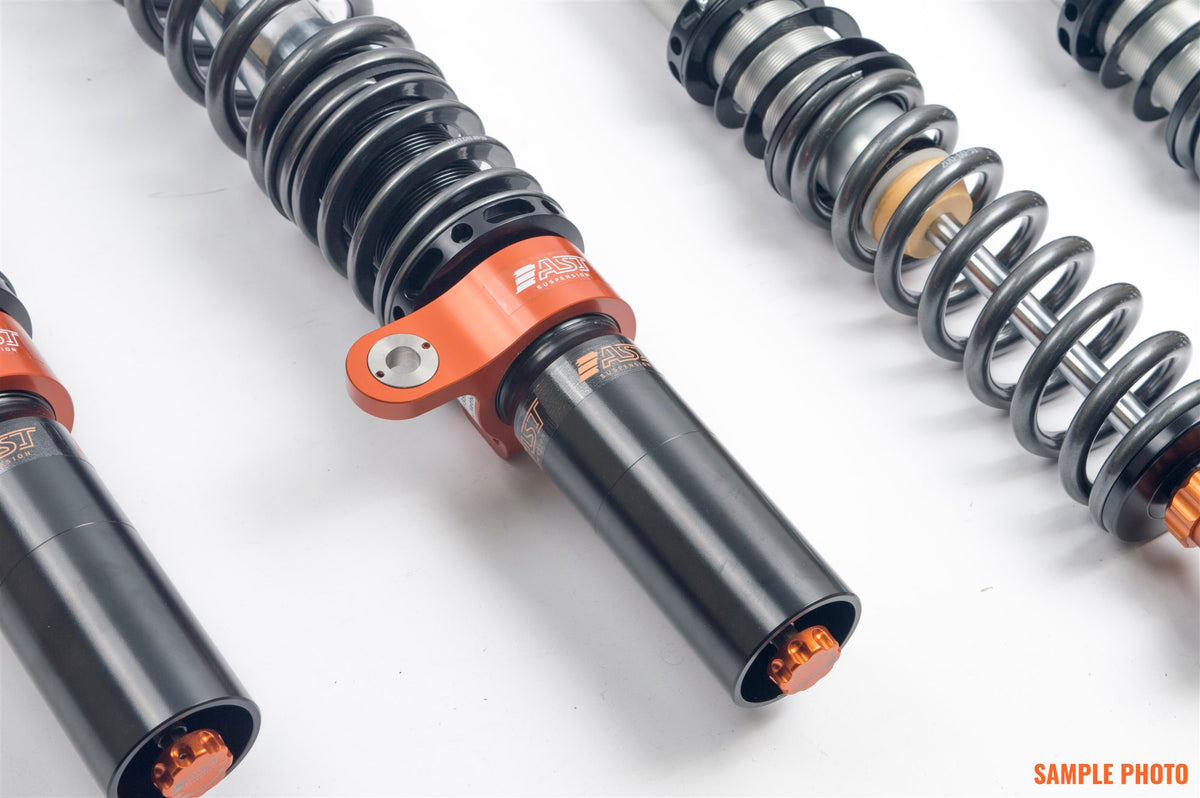

5100 Street Performance TCO (AST ACT)

The 5100 Street Performance kit in TCO form: inverted monotube coilovers front and rear, adjustable for rebound damping and ride height. Camber-adjustable front top mounts are included, and solid rear ones where the car needs them. Adjustable camber lets you set the angle of the front wheels, and with it how the front end grips. The rebound adjuster has 12 positions, and the dampers can be rebuilt.

AST part number: ACT-R2011S

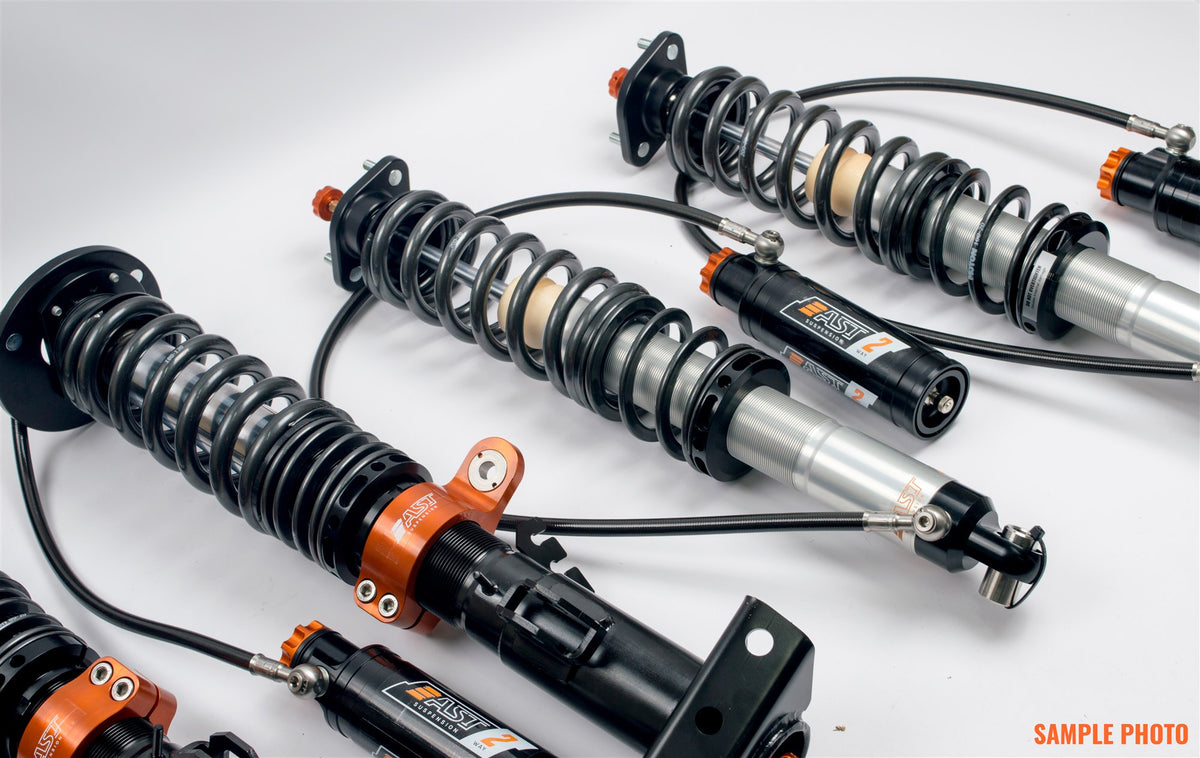

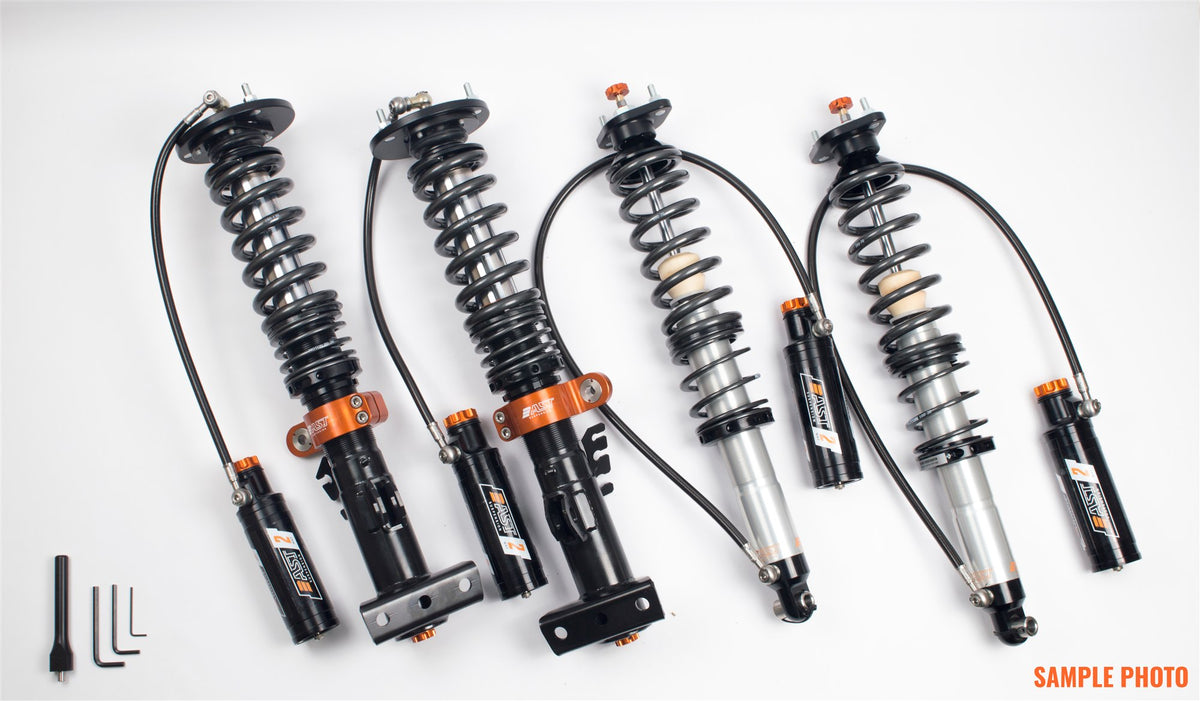

5200 2-Way Motorsport (AST RIV)

Rebound and compression damping each have their own adjuster, and ride height adjusts too. Compression damping sets how quickly the suspension moves in; rebound sets how quickly it extends again. The dampers work with external reservoirs, mounted remotely. The struts are inverted, which AST use because that design copes with heavy sideways loads and with braking. Where the car needs them, camber-adjustable front and solid rear top mounts are included. Spring rates can be changed, and the rebound adjuster has 12 positions. AST made it first of all for track driving.

AST part number: RIV-R2011S

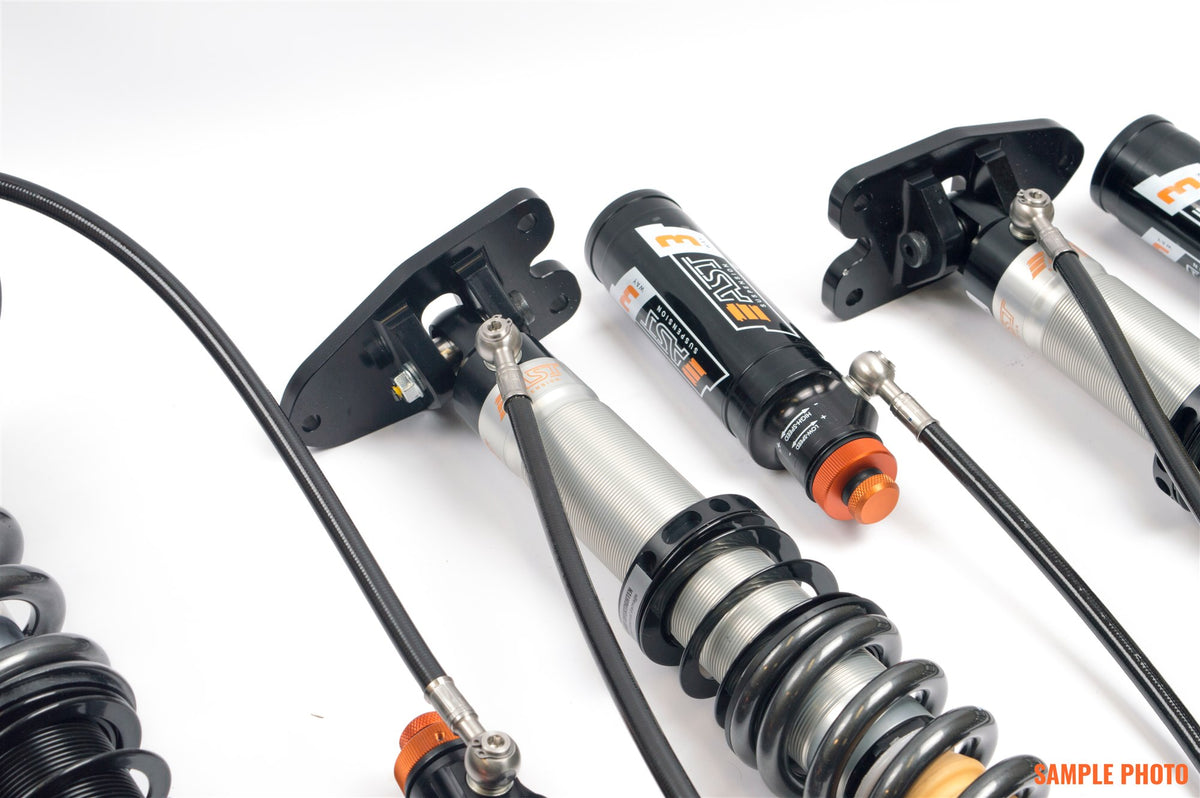

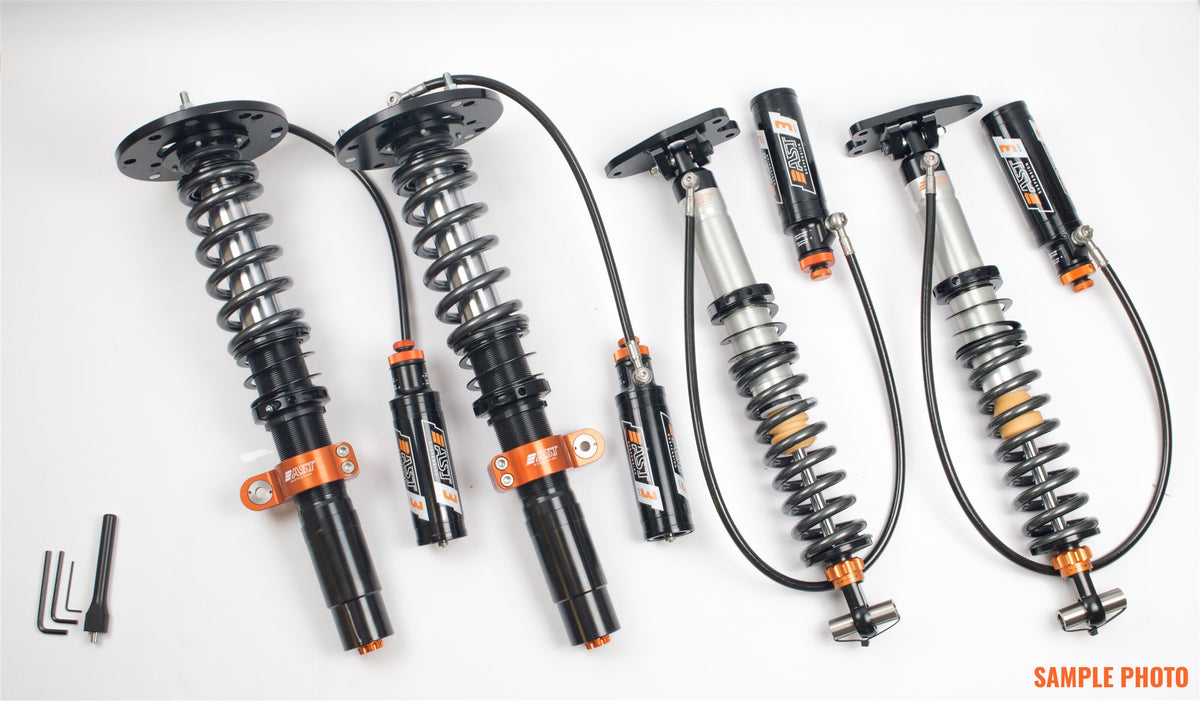

5300 3-Way Motorsport (AST RAC)

Three separate damping adjusters - rebound, low-speed compression and high-speed compression - plus adjustable ride height. Low-speed compression looks after slow, gradual movement of the suspension; high-speed compression looks after sharp, hard hits. The dampers work with external reservoirs, mounted remotely. The struts are inverted, which AST use because that design copes with heavy sideways loads and with braking. Where the car needs them, camber-adjustable front and solid rear top mounts are included. Spring rates can be changed, and the rebound adjuster has 12 positions. AST's kit for the most committed circuit drivers.

AST part number: RAC-R2011S

The photos are AST's own sample shots of each series, not of the kit for your car, which is made for its suspension and differs in detail.

Series	5100 Street TCO, coilovers front and rear (AST ACU); 5100 Street Performance TCO (AST ACT); 5200 2-Way Motorsport (AST RIV); 5300 3-Way Motorsport (AST RAC)
AST part numbers	ACU-R2011S, ACT-R2011S, RIV-R2011S, RAC-R2011S

Make	Model	Version	Years
Renault	Megane	B9 RS, RS Trophy	2017-2021

Fitting notes

5200 and 5300 kits: AST say the body needs modifying for the front top mounts and to fit the reservoirs (canisters).
