AST Coilovers for Audi R8 (42) V8 & V10

Coilovers for the first-generation R8, the 42 of 2007 to 2015, V8 and V10. AST list three kits: the 5100 Street, in one version for the V10 and another for the V8, and the 5200 2-Way and 5300 3-Way, which fit both engines.

• Three series: 5100 Street, 5200 2-Way and 5300 3-Way
• R8 V8 and V10, 42, 2007 to 2015
• 5100 Street: separate kits for the V8 and V10
• 5200 and 5300: separate compression adjustment and external reservoirs

Choose your series

Every AST damper is a monotube: nothing inside can aerate or foam, which AST say keeps the valving responsive.

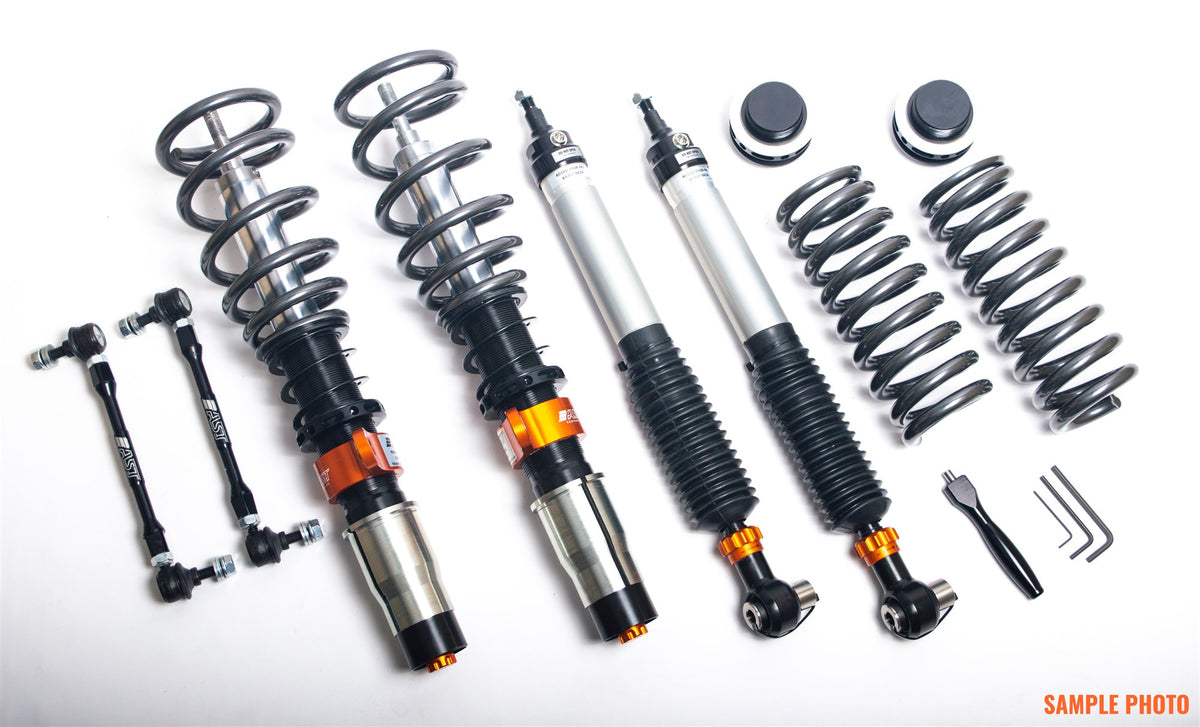

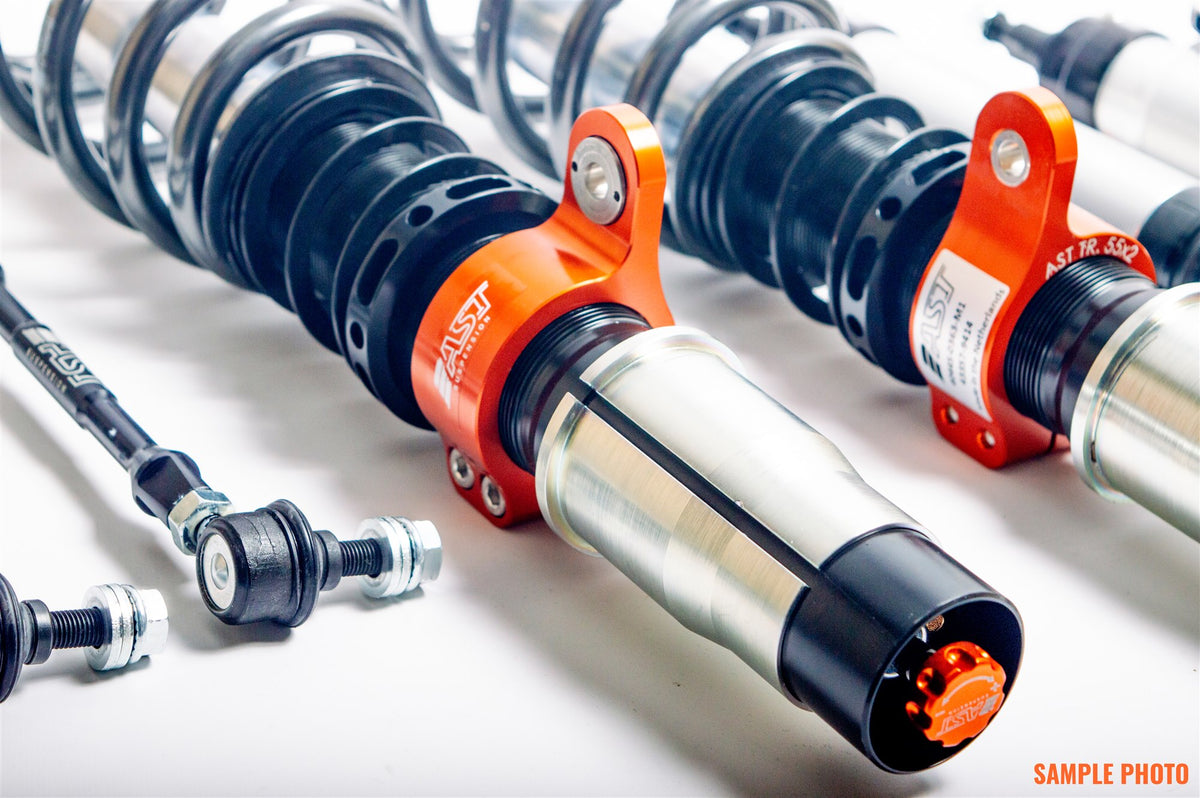

5100 Street, inverted (AST ACU)

The 5100 Street kit with inverted monotube dampers, adjustable for rebound damping and ride height. The front dampers are coilovers; at the rear the spring and damper stay separate, as the car was built. Springs come in the kit, which works with the car's original top mounts. AST fix the rear spring rate for each car. The rebound adjuster has 12 positions, and the dampers can be rebuilt.

• ACU-A4001S (V10): Audi R8 42
• ACU-A4002S (V8): Audi R8 42

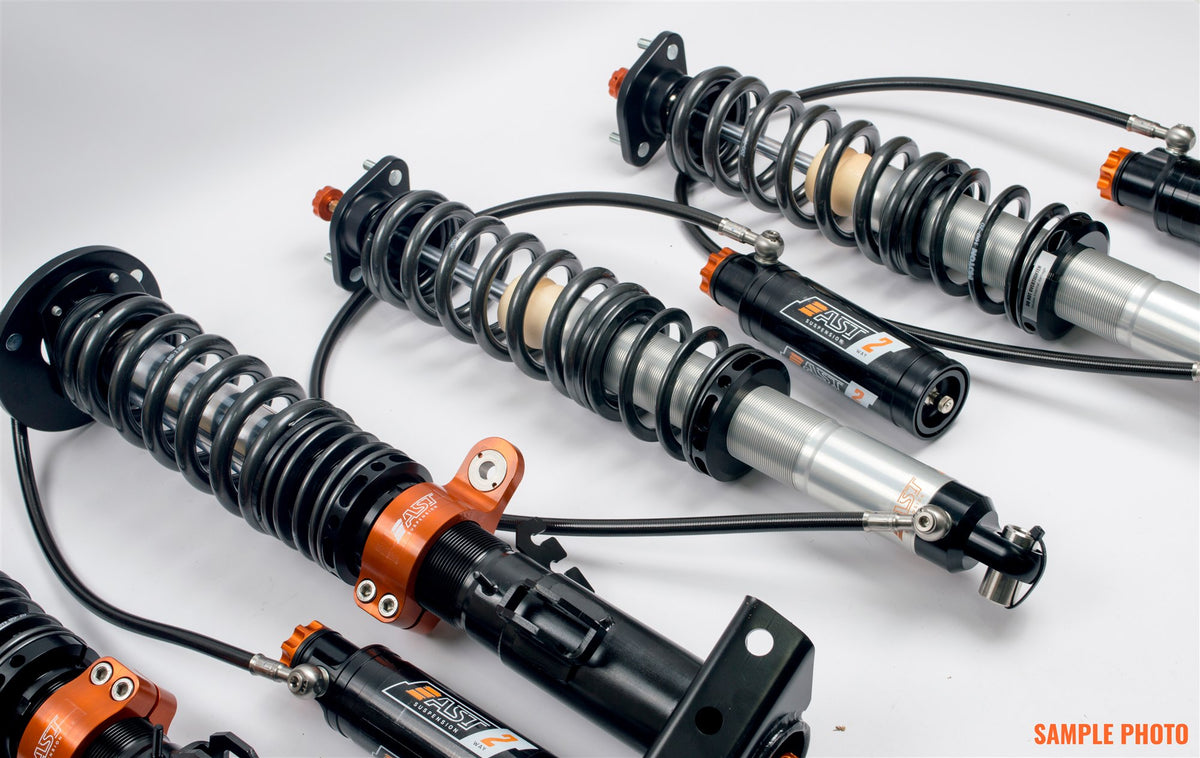

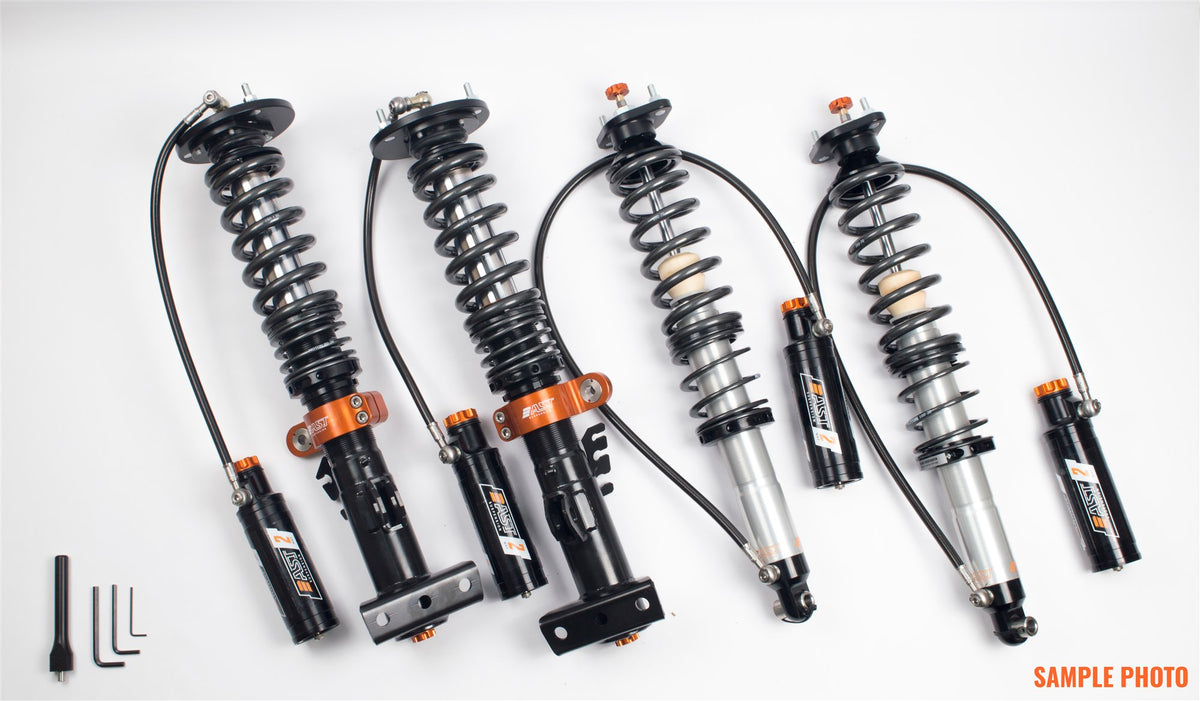

5200 2-Way Motorsport (AST RIV)

Rebound and compression damping each have their own adjuster, and ride height adjusts too. Compression damping sets how quickly the suspension moves in; rebound sets how quickly it extends again. The dampers work with external reservoirs, mounted remotely. The struts are inverted, which AST use because that design copes with heavy sideways loads and with braking. Where the car needs them, camber-adjustable front and solid rear top mounts are included. Spring rates can be changed, and the rebound adjuster has 12 positions. AST made it first of all for track driving.

AST part number: RIV-A4001S

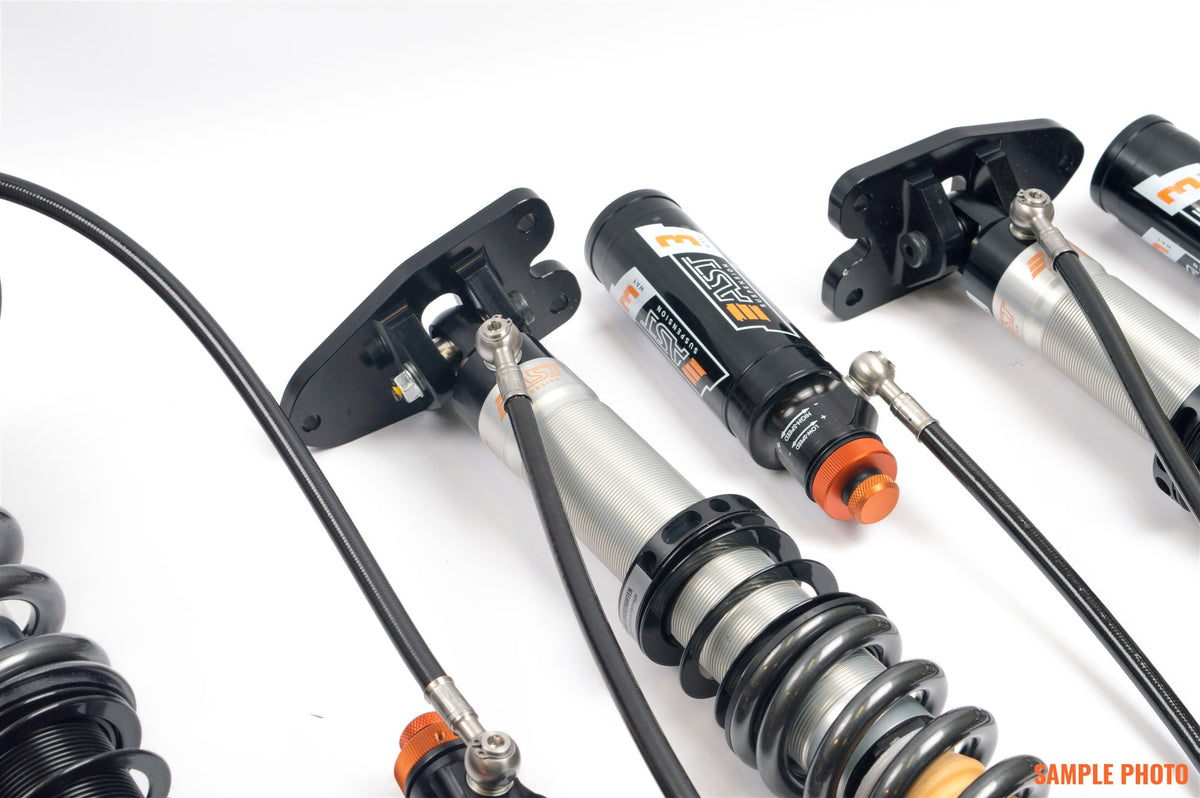

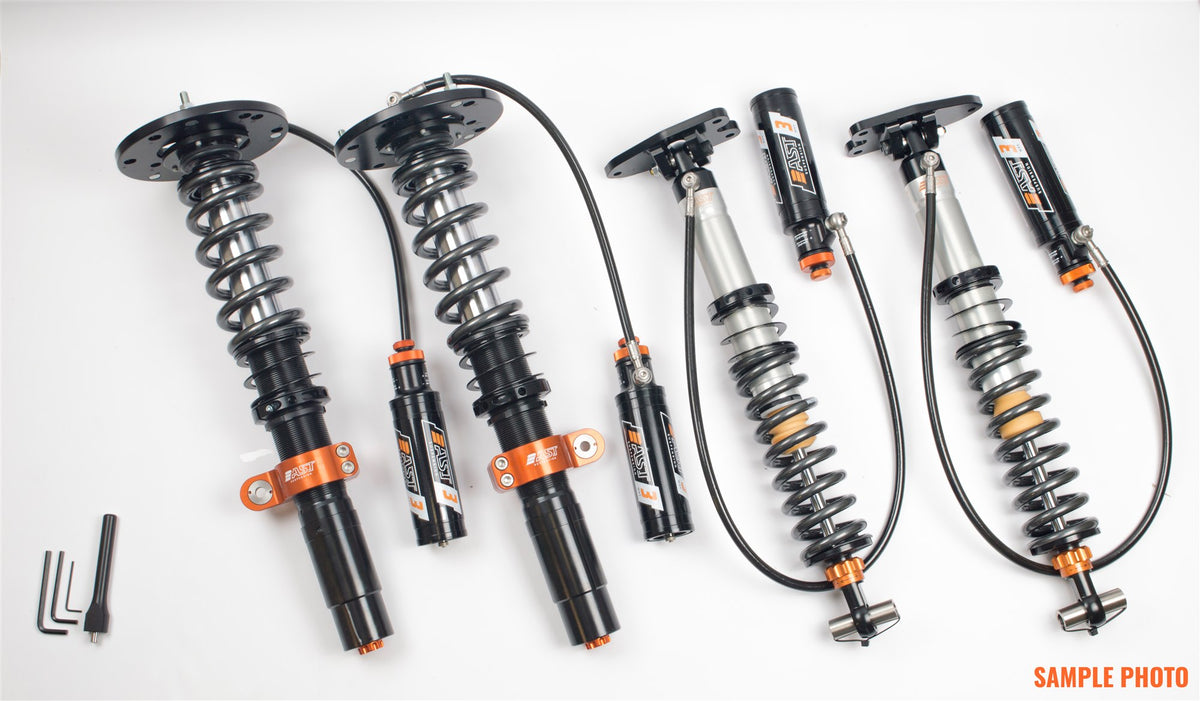

5300 3-Way Motorsport (AST RAC)

Three separate damping adjusters - rebound, low-speed compression and high-speed compression - plus adjustable ride height. Low-speed compression looks after slow, gradual movement of the suspension; high-speed compression looks after sharp, hard hits. The dampers work with external reservoirs, mounted remotely. The struts are inverted, which AST use because that design copes with heavy sideways loads and with braking. Where the car needs them, camber-adjustable front and solid rear top mounts are included. Spring rates can be changed, and the rebound adjuster has 12 positions. AST's kit for the most committed circuit drivers.

AST part number: RAC-A4001S

The photos are AST's own sample shots of each series, not of the kit for your car, which is made for its suspension and differs in detail.
