AST 5200 & 5300 Coilovers for Lotus Emira 2.0

Motorsport coilovers for the four-cylinder Emira 2.0, listed by AST from 2024 on. Two kits are offered: the 5200 2-Way and the 5300 3-Way, both with external reservoirs, adjustable ride height and changeable spring rates.

• Two series: 5200 2-Way and 5300 3-Way, both with external reservoirs
• Lotus Emira 2.0, 2024 on
• 5300: separate low-speed and high-speed compression adjusters
• Changeable spring rates and a 12-position rebound adjuster

Choose your series

Every AST damper is a monotube: nothing inside can aerate or foam, which AST say keeps the valving responsive.

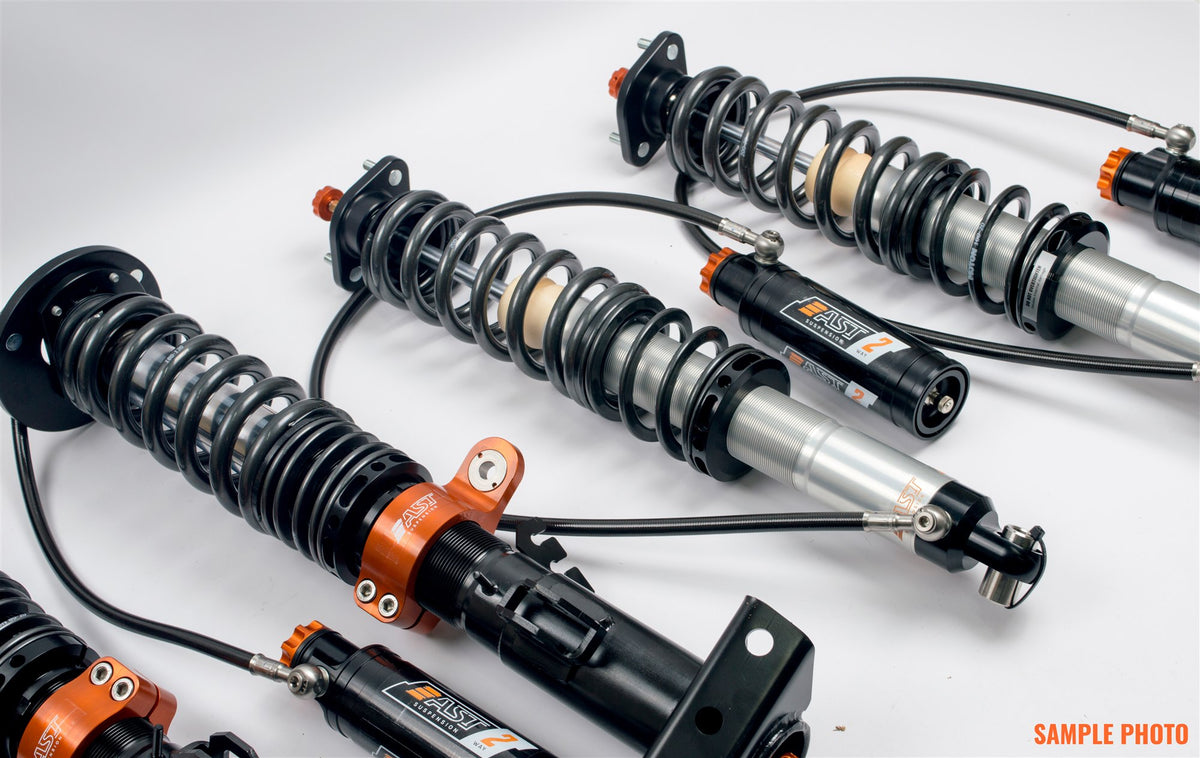

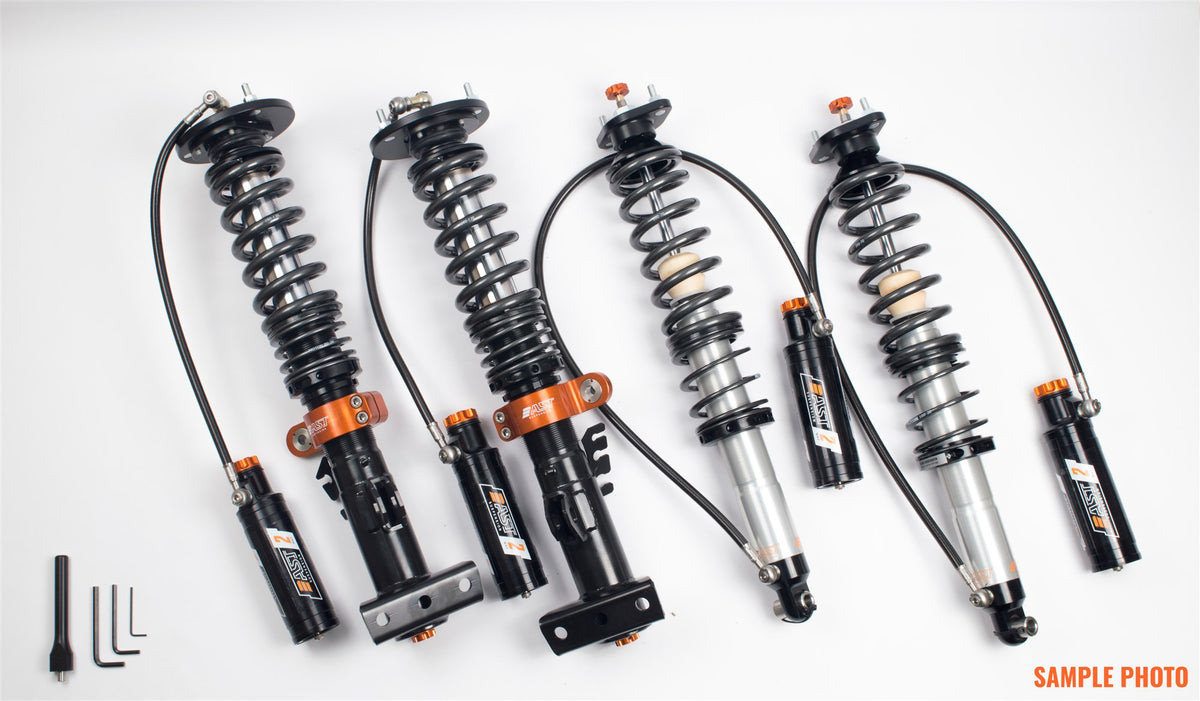

5200 2-Way Motorsport (AST RIV)

Rebound and compression damping each have their own adjuster, and ride height adjusts too. Compression damping sets how quickly the suspension moves in; rebound sets how quickly it extends again. The dampers work with external reservoirs, mounted remotely. The struts are inverted, which AST use because that design copes with heavy sideways loads and with braking. Where the car needs them, camber-adjustable front and solid rear top mounts are included. Spring rates can be changed, and the rebound adjuster has 12 positions. AST made it first of all for track driving.

AST part number: RIV-L2402S

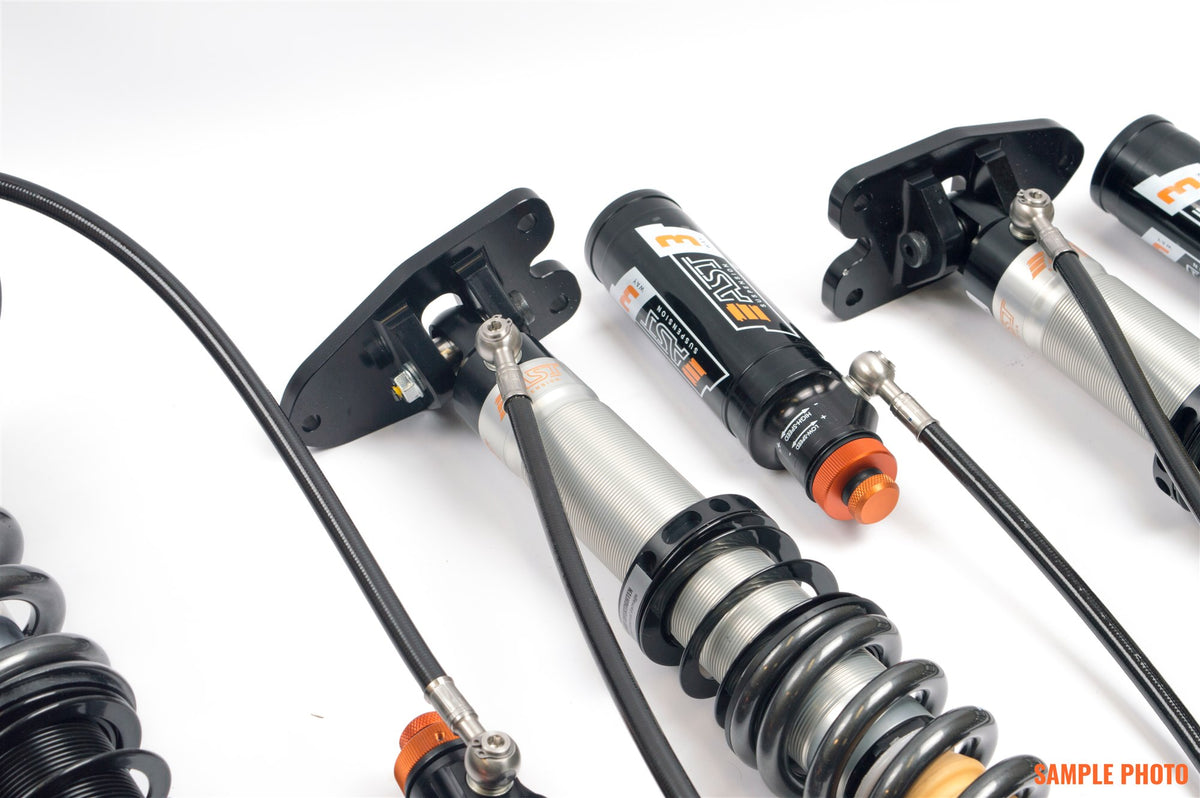

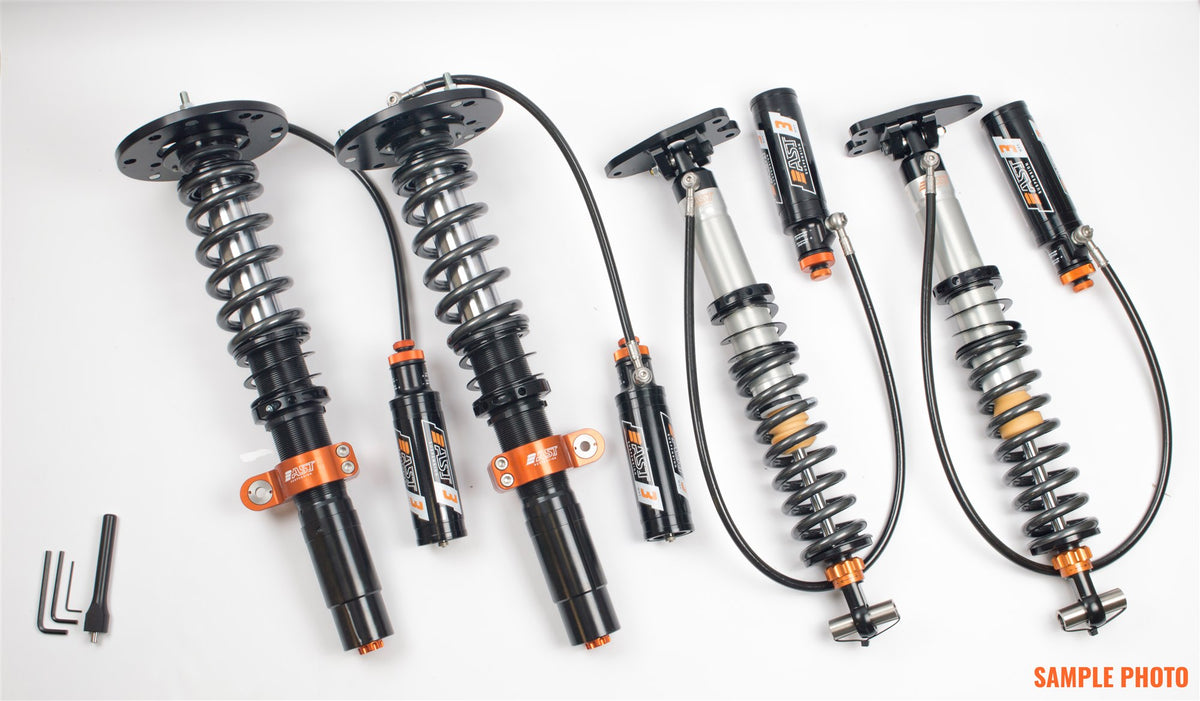

5300 3-Way Motorsport (AST RAC)

Three separate damping adjusters - rebound, low-speed compression and high-speed compression - plus adjustable ride height. Low-speed compression looks after slow, gradual movement of the suspension; high-speed compression looks after sharp, hard hits. The dampers work with external reservoirs, mounted remotely. The struts are inverted, which AST use because that design copes with heavy sideways loads and with braking. Where the car needs them, camber-adjustable front and solid rear top mounts are included. Spring rates can be changed, and the rebound adjuster has 12 positions. AST's kit for the most committed circuit drivers.

AST part number: RAC-L2402S

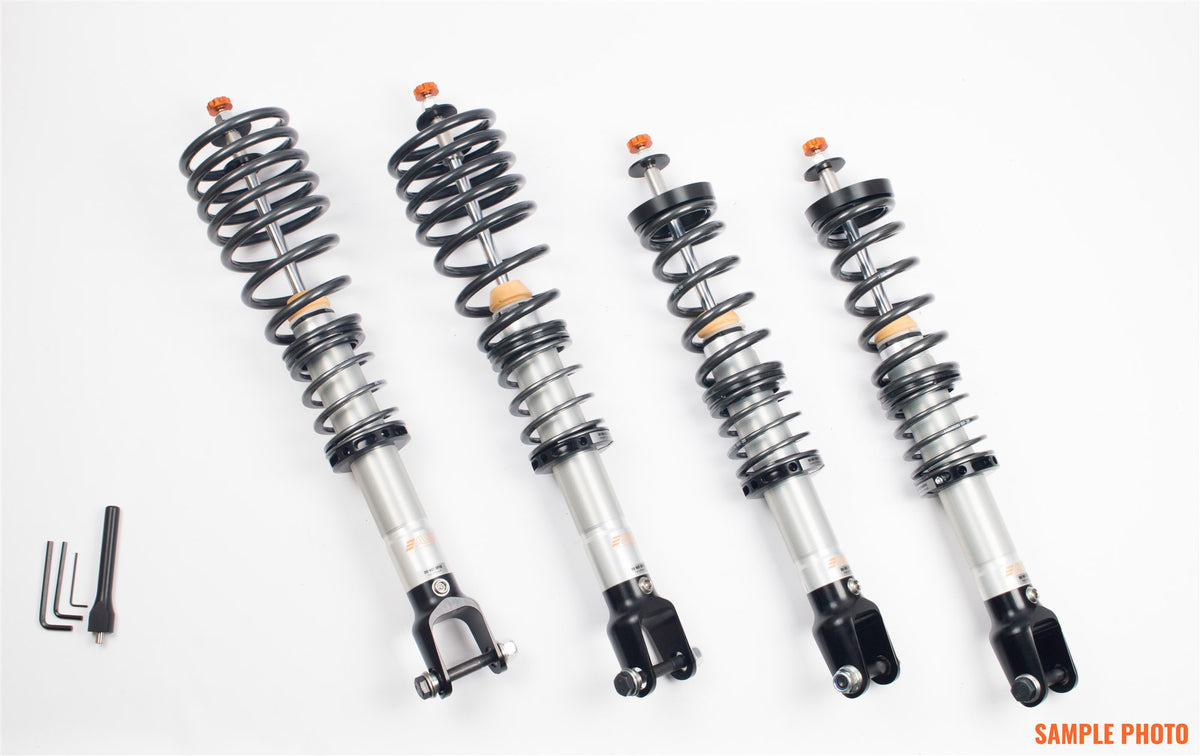

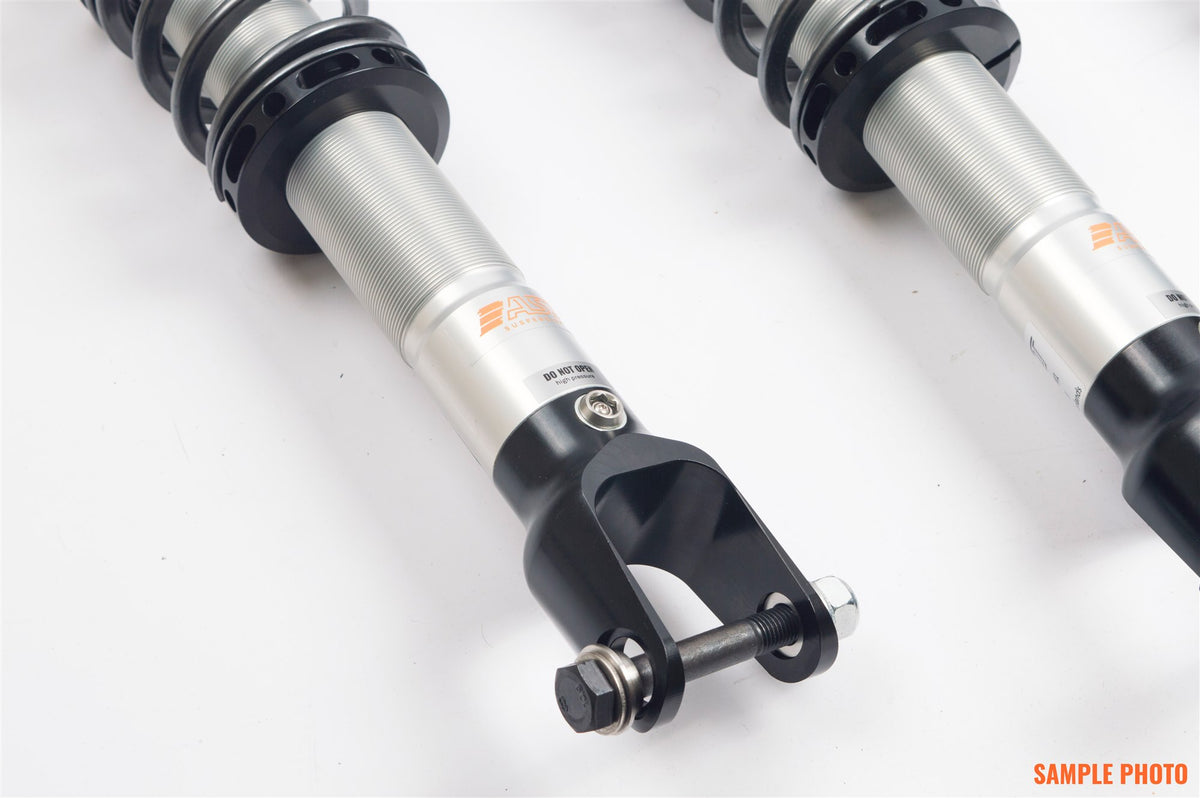

The photos are AST's own sample shots of each series, not of the kit for your car, which is made for its suspension and differs in detail.
