AST 5200 & 5300 Coilovers for Lotus Elise S2 & Exige S2

Motorsport coilovers for the S2 Elise and Exige. AST list two S2 kits: one for the Elise S2 of 2001 to 2011, and one for the Elise and Exige S2 of 2004 to 2006. Choose the model, then the 5200 2-Way or the 5300 3-Way, both with external reservoirs.

• Two S2 kits: Elise S2 2001-2011, and Elise or Exige S2 2004-2006
• Two series: 5200 2-Way and 5300 3-Way, both with external reservoirs
• 5300: separate low-speed and high-speed compression adjusters
• Changeable spring rates and a 12-position rebound adjuster

Choose your series

Every AST damper is a monotube: nothing inside can aerate or foam, which AST say keeps the valving responsive.

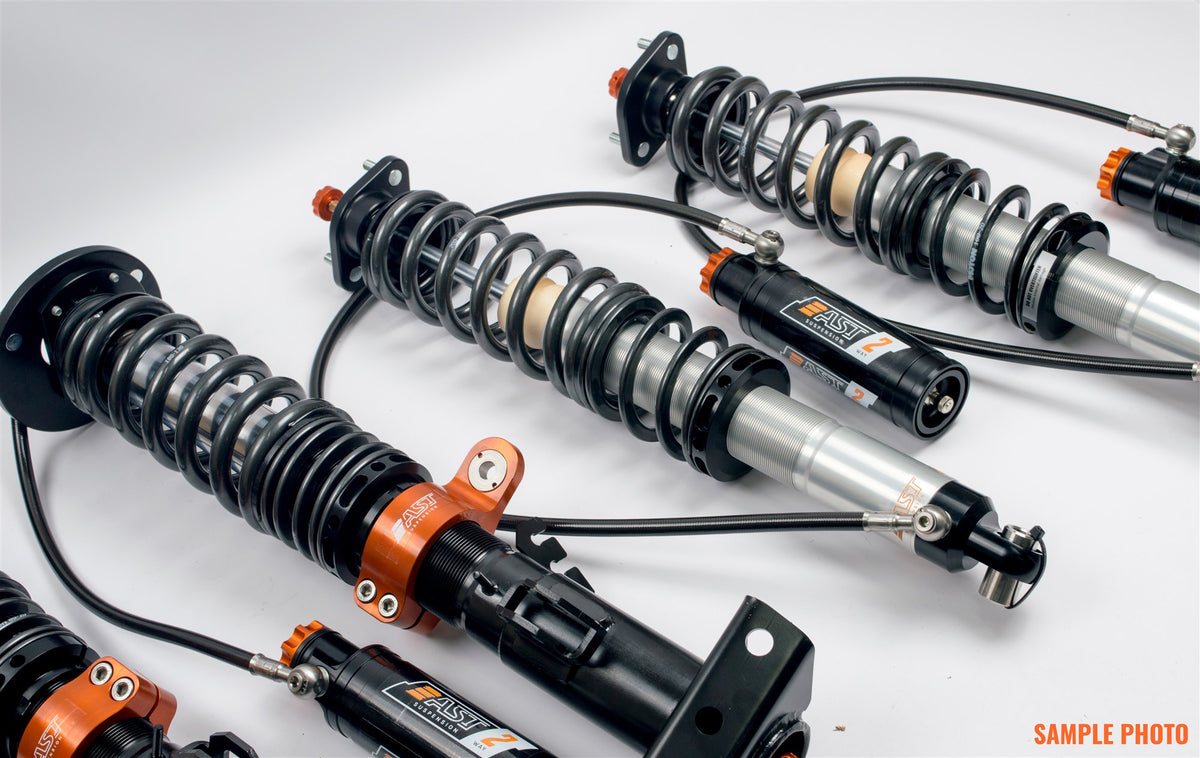

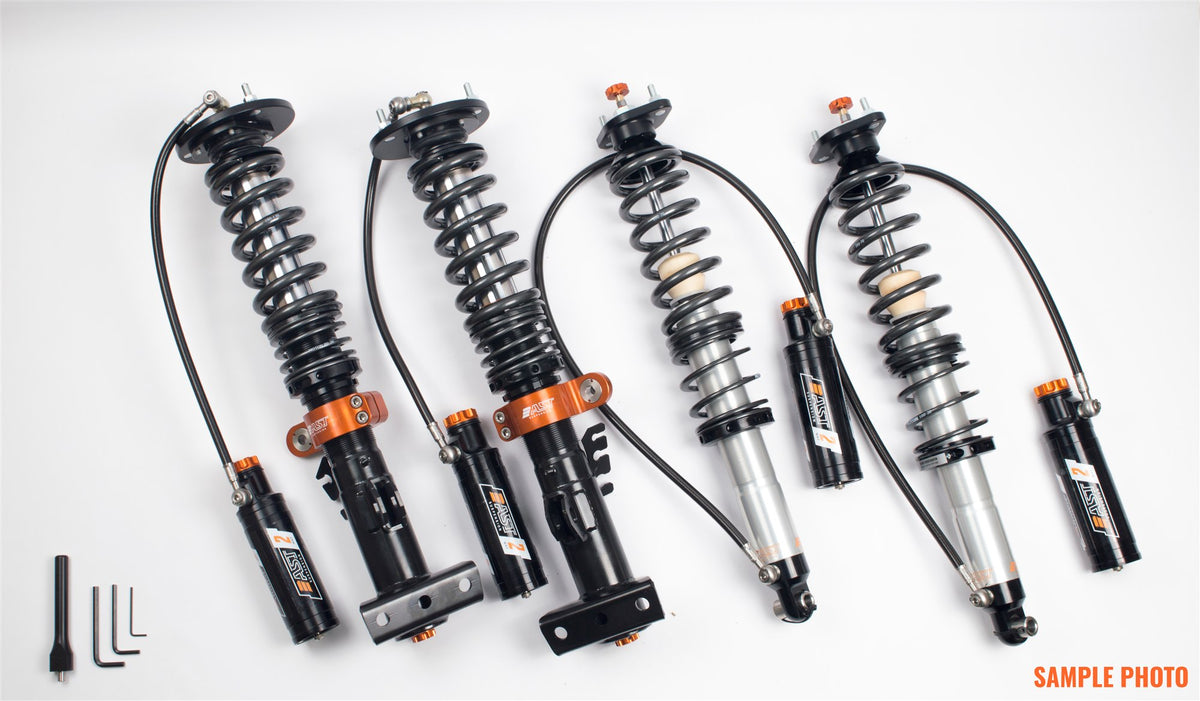

5200 2-Way Motorsport (AST RIV)

Rebound and compression damping each have their own adjuster, and ride height adjusts too. Compression damping sets how quickly the suspension moves in; rebound sets how quickly it extends again. The dampers work with external reservoirs, mounted remotely. The struts are inverted, which AST use because that design copes with heavy sideways loads and with braking. Where the car needs them, camber-adjustable front and solid rear top mounts are included. Spring rates can be changed, and the rebound adjuster has 12 positions. AST made it first of all for track driving.

• RIV-L1102S (Elise S2 2001-2011): Lotus Elise S2
• RIV-L1103S (Elise or Exige S2 2004-2006): Lotus Elise / Exige S2

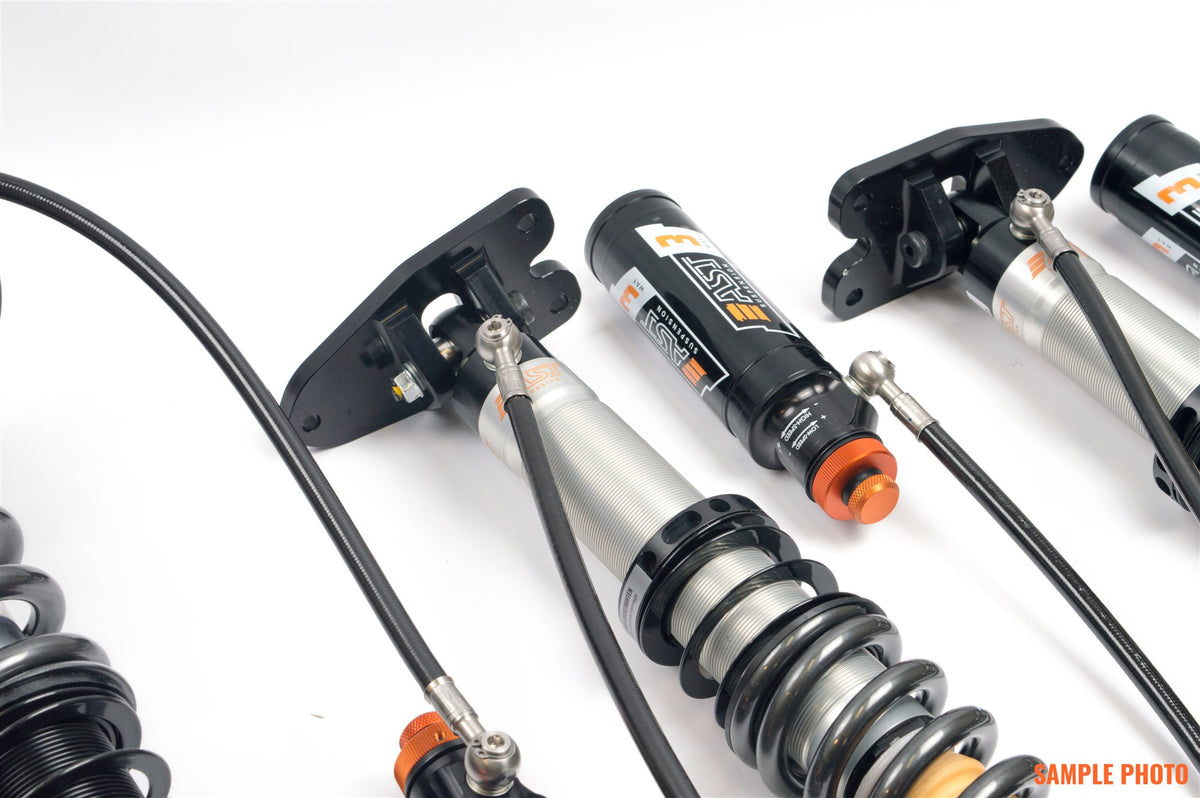

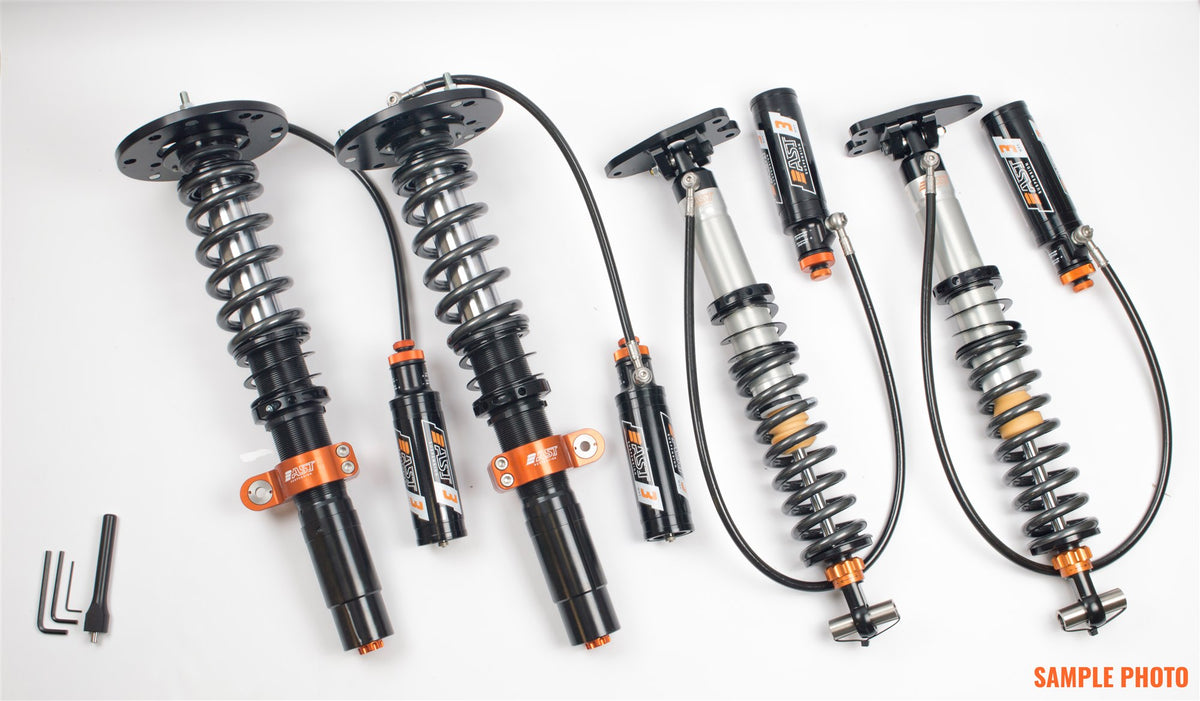

5300 3-Way Motorsport (AST RAC)

Three separate damping adjusters - rebound, low-speed compression and high-speed compression - plus adjustable ride height. Low-speed compression looks after slow, gradual movement of the suspension; high-speed compression looks after sharp, hard hits. The dampers work with external reservoirs, mounted remotely. The struts are inverted, which AST use because that design copes with heavy sideways loads and with braking. Where the car needs them, camber-adjustable front and solid rear top mounts are included. Spring rates can be changed, and the rebound adjuster has 12 positions. AST's kit for the most committed circuit drivers.

• RAC-L1102S (Elise S2 2001-2011): Lotus Elise S2
• RAC-L1103S (Elise or Exige S2 2004-2006): Lotus Elise / Exige S2

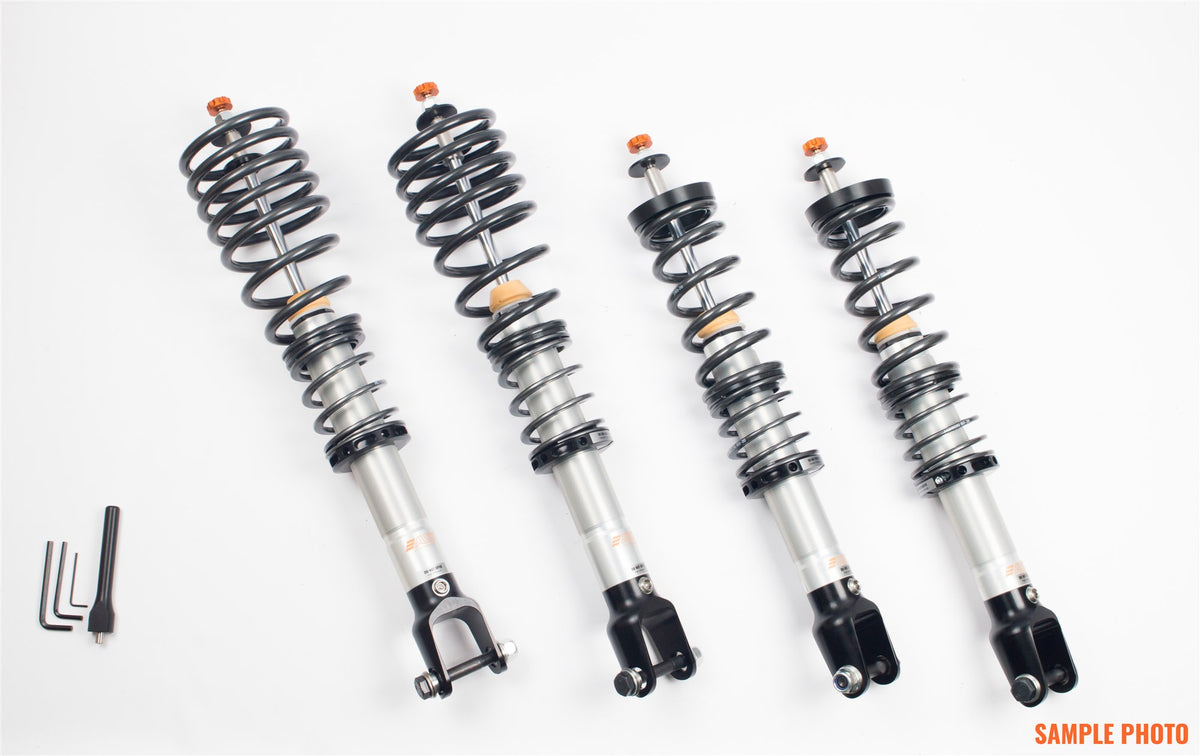

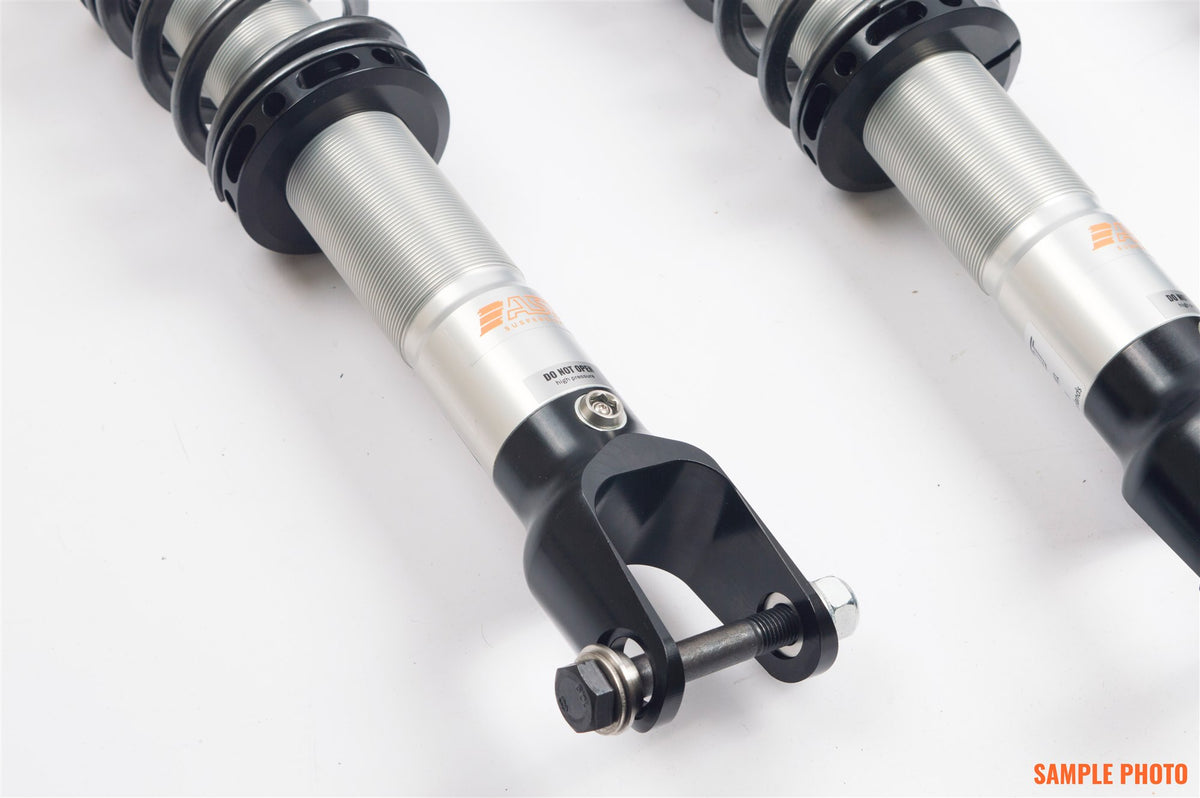

The photos are AST's own sample shots of each series, not of the kit for your car, which is made for its suspension and differs in detail.
