SKU:CP9572-2S0BG
AP Racing

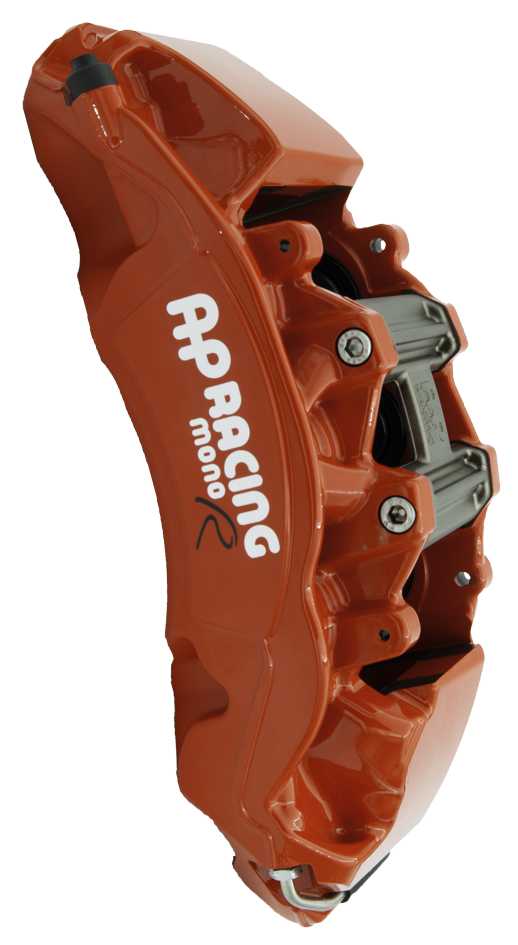

AP Racing Mono R 6-Piston Caliper CP9572 (Ø410mm Disc)
AP Racing Mono R 6-Piston Caliper CP9572 (Ø410mm Disc)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A six-piston Mono R caliper from AP Racing for performance road cars (front or rear, including pickups, SUVs and 4x4s): a forged one-piece (monobloc) aluminium body with aluminium pistons, radial mounting on 195mm centres and Ø370-410mm discs, 35-36mm thick. Sold per caliper in black, red, silver, yellow or white, right or left hand, trailing or leading.
- 6 pistons (Ø27.0mm, Ø31.8mm and Ø38.1mm, two of each), 50.1cm² piston area
- Forged one-piece (monobloc) aluminium body and aluminium pistons: AP Racing say it is stiffer and cools better than their two-piece World Radi-CAL calipers
- Radial mount, 195mm centres
- Ø370-410mm discs, 35-36mm thick
- Black, red, silver, yellow or white paint finish
Check before you order
- Priced per caliper: one axle needs a right-hand and a left-hand caliper.
- This is the caliper on its own: discs and mounting brackets are not included.
- Trailing calipers sit behind the axle, leading calipers in front of it: choose the handing that matches where the caliper mounts on your car.
| Part numbers | CP9572-[2-5]S0 + colour: -2 RHT, -3 LHT, -4 RHL, -5 LHL; colour BG black, R28 red, S10 silver, Y23 yellow, W1 white (e.g. CP9572-2S0BG) |
|---|---|
| Range | Mono R, 6-piston |
| Piston sizes | Ø27.0mm x 2, Ø31.8mm x 2 and Ø38.1mm x 2 |
| Piston area | 50.1cm² |
| Use | Performance road, front or rear; pickup trucks, SUVs and 4x4s |
| Vehicles up to | 3.5 tonnes gross vehicle weight |
| Front axle, gross vehicle weight up to | 3,500kg (front-engined car) / 4,100kg (rear-engined car) |
| Body | Forged monobloc (one-piece) aluminium alloy |
| Pistons | Aluminium alloy |
| Mounting | Radial, 195mm centres |
| Discs | Ø370-410mm, 35-36mm thick |
| Mounting offset | 49.5mm |
| Minimum worn disc thickness | 34.5mm (36mm disc) / 33.5mm (35mm disc) |
| Mounting hole | 12.1mm |
| 'PL' dimension | 70.0mm |
| Weight (no pads) | 4.66kg (AP Racing's estimate; 6.65kg with pads) |
| Hydraulic thread | M10x1.0 |
| Bleed screw torque | 17Nm |
| Brake pad | CP9555D65: area 119.96cm², depth 65mm, thickness 16.65mm |
| Seals | Boot-type dirt seals |
| Pad clip | Pad anti-rattle clip fitted |
| Paint finish | Black (BG), red (R28), silver (S10), yellow (Y23) or white (W1) |
| Seal repair kit | CP4527-CEJ |
| Spare pistons | Ø27.0mm CP7555-106, Ø31.8mm CP8336-116, Ø38.1mm CP8335-110 (two of each) |
| Discs AP Racing list to suit | Ø370x36mm CP3784-488GA / -489GA; Ø380x36mm CP7177-448GA / -449GA; Ø390x36mm CP7177-406GA / -407GA or CP7177-124GA / -125GA; Ø410x36mm CP4095-318CG12 / -319CG12 |
| Part number 'S0' | S0 in the part number: side feed inlet, no anti-knockback spring |
Fitting notes
- Bleed screws must be at the top.
- The disc must pass the smaller piston first (differential bore calipers).
- AP Racing say brake parts should only be fitted by people experienced in fitting disc brake systems.
