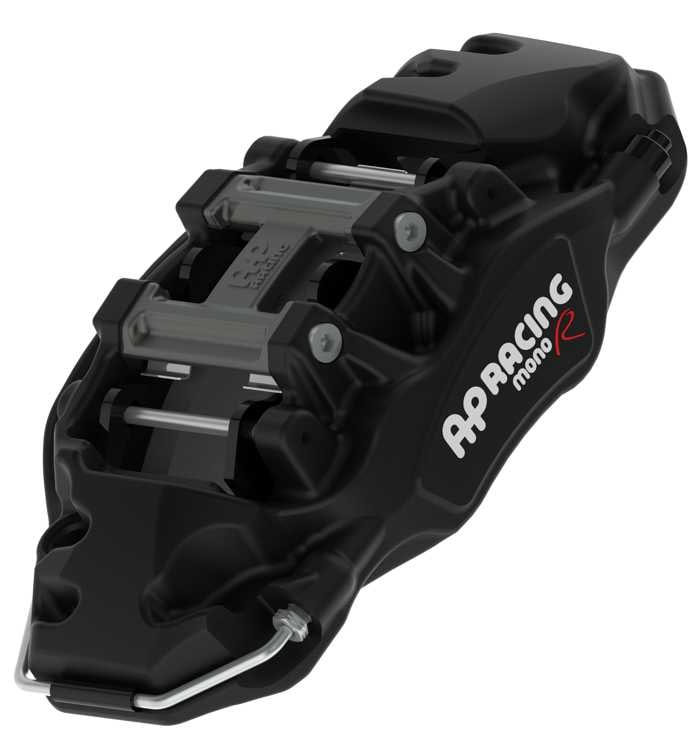

AP Racing Mono R 4-Piston Caliper CP9582 (Ø380mm Disc)
AP Racing Mono R 4-Piston Caliper CP9582 (Ø380mm Disc)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A four-piston Mono R caliper from AP Racing for performance road cars (front or rear, including pickups, SUVs and 4x4s): a forged one-piece (monobloc) aluminium body with aluminium pistons, radial mounting on 195mm centres and Ø350-380mm discs, 32mm or 28mm thick. Sold per caliper in black, red, yellow or white, right or left hand, trailing or leading.
- 4 pistons (Ø27.0mm x 4), 22.9cm² piston area
- Forged one-piece (monobloc) aluminium body and aluminium pistons: AP Racing say it is stiffer and cools better than their two-piece World Radi-CAL calipers
- Radial mount, 195mm centres
- Ø350-380mm discs, 32mm or 28mm thick
- Black, red, yellow or white paint finish
Check before you order
- Priced per caliper: one axle needs a right-hand and a left-hand caliper.
- This is the caliper on its own: discs and mounting brackets are not included.
- Trailing calipers sit behind the axle, leading calipers in front of it: choose the handing that matches where the caliper mounts on your car.
| Part numbers | CP9582-[2-9]S0 + colour: -2 RHT, -3 LHT, -4 RHL, -5 LHL for 32mm discs; -6 RHT, -7 LHT, -8 RHL, -9 LHL for 28mm discs; colour BG black, R28 red, Y23 yellow, W1 white (e.g. CP9582-2S0BG) |
|---|---|
| Range | Mono R, 4-piston |
| Piston sizes | Ø27.0mm x 4 |
| Piston area | 22.9cm² |
| Use | Performance road, front or rear; pickup trucks, SUVs and 4x4s |
| Vehicles up to | 3.5 tonnes gross vehicle weight |
| Front axle, gross vehicle weight up to | 1,430kg (front-engined car) / 1,670kg (rear-engined car) |
| Body | Forged monobloc (one-piece) aluminium alloy |
| Pistons | Aluminium alloy |
| Mounting | Radial, 195mm centres |
| Discs | Ø350-380mm: 31-32mm thick (-2 to -5) or 27-28mm (-6 to -9) |
| Disc thickness by part number | CP9582-2 to -5: 32mm; CP9582-6 to -9: 28mm |
| Mounting offset | 36.0mm |
| Mounting hole | 12.1mm |
| 'PL' dimension | 55.0mm |
| Weight (no pads) | 3.20kg (AP Racing's estimate; 4.40kg with pads) |
| Hydraulic thread | M10x1.0 |
| Bleed screw torque | 17Nm |
| Brake pad | CP7040D61: area 72.5cm², depth 61.0mm, thickness 16.75mm |
| Brake pad (28mm disc calipers) | CP7040D54 |
| Seals | Boot-type dirt seals |
| Pad clip | Pad anti-rattle clip fitted |
| Paint finish | Black (BG), red (R28), yellow (Y23) or white (W1) |
| Seal repair kit | CP4527-CC |
| Spare pistons | 32mm-disc calipers: Ø27.0mm CP9580-106 (x4); 28mm: Ø27.0mm CP9580-110 (x4) |
| Discs AP Racing list to suit | 32mm: Ø362x32mm CP4542-142CG12 / -143CG12; Ø380x32mm CP7177-134CG12 / -135CG12 |
| Also to suit | 28mm: Ø356x28mm CP3781-2126CG12 / -2127CG12 |
| Also to suit | 28mm: Ø380x28mm CP5914-484GA / -485GA |
| Part number 'S0' | S0 in the part number: side feed inlet, no anti-knockback spring |
Fitting notes
- Bleed screws must be at the top.
- AP Racing say brake parts should only be fitted by people experienced in fitting disc brake systems.
