SKU:CP9446-2S4L
AP Racing

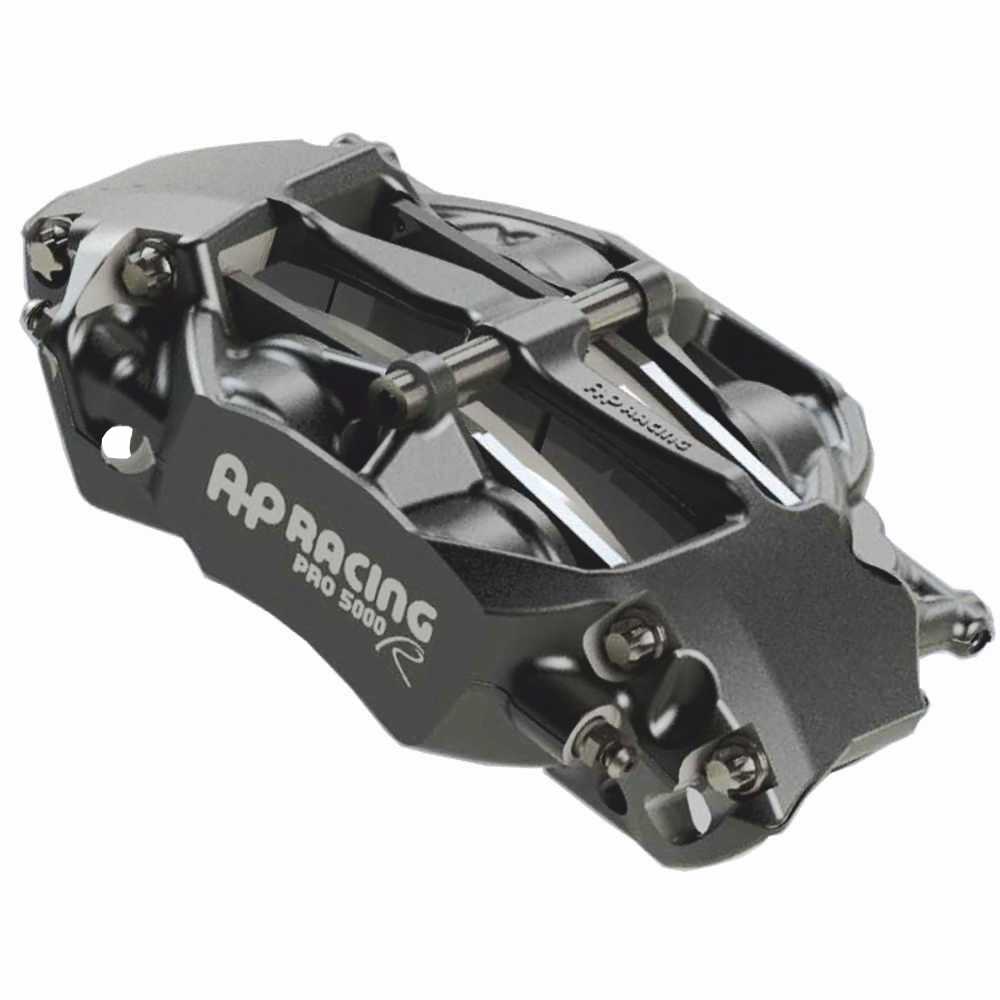

AP Racing CP9446 Pro 5000 R 4-Piston Race Caliper (Front, Ø356-378mm Disc)
AP Racing CP9446 Pro 5000 R 4-Piston Race Caliper (Front, Ø356-378mm Disc)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A four-piston Pro 5000 R caliper from AP Racing for competition use (front): a forged two-piece aluminium body with stainless steel pistons, radial mounting on 180mm centres and Ø356-378mm discs, 28-32mm thick. Sold per caliper with a grey anodised finish, right or left hand.
- 4 pistons (Ø34.9mm x 2, Ø41.3mm x 2), 45.6cm² piston area
- Forged two-piece aluminium body, stainless steel pistons, high-temperature seals
- Radial mount, 180mm centres
- Ø356-378mm discs, 28-32mm thick
- Grey anodised finish
Check before you order
- Priced per caliper: one axle needs a right-hand and a left-hand caliper.
- This is the caliper on its own: discs and mounting brackets are not included.
| Part numbers | CP9446-2 RH, -3 LH + S4L grey anodised (e.g. CP9446-2S4L) |
|---|---|
| Range | Pro 5000 R, 4-piston |
| Piston sizes | Ø34.9mm x 2 and Ø41.3mm x 2 |
| Piston area | 45.6cm² |
| Use | Budget, general competition use |
| Body | Forged two-piece aluminium alloy |
| Pistons | Stainless steel |
| Mounting | Radial, 180.0mm x 35.0mm centres |
| Discs | Ø356-378mm, 28-32mm thick |
| Mounting offset | 35.0mm |
| Mounting hole | 12.0mm |
| 'PL' dimension | 58.0mm |
| Weight (no pads) | 2.23kg |
| Hydraulic thread | M10x1.0 |
| Bleed screw torque | 17Nm |
| Brake pad | CP6820D48: area 63.2cm², depth 48.0mm, thickness 16.0mm |
| Seals | High-temperature seals |
| Wear plates | Stainless steel |
| Finish | Grey anodised |
| Seal repair kit | CP8518-GK |
| Spare pistons | Ø34.9mm CP9444-110, Ø41.3mm CP9444-111 |
| Part number 'S4' | S4 in the part number: side feed inlet, 4 lb anti-knockback spring |
Fitting notes
- Bleed screws must be at the top.
- The disc must pass the smaller piston first (differential bore calipers).
- AP Racing say brake parts should only be fitted by people experienced in fitting disc brake systems.
- AP Racing: calipers that regularly run at up to 180°C should be re-sealed every other event; from 180°C to 220°C and above, re-seal as soon as possible.
