SKU:CP7030-2S0
AP Racing

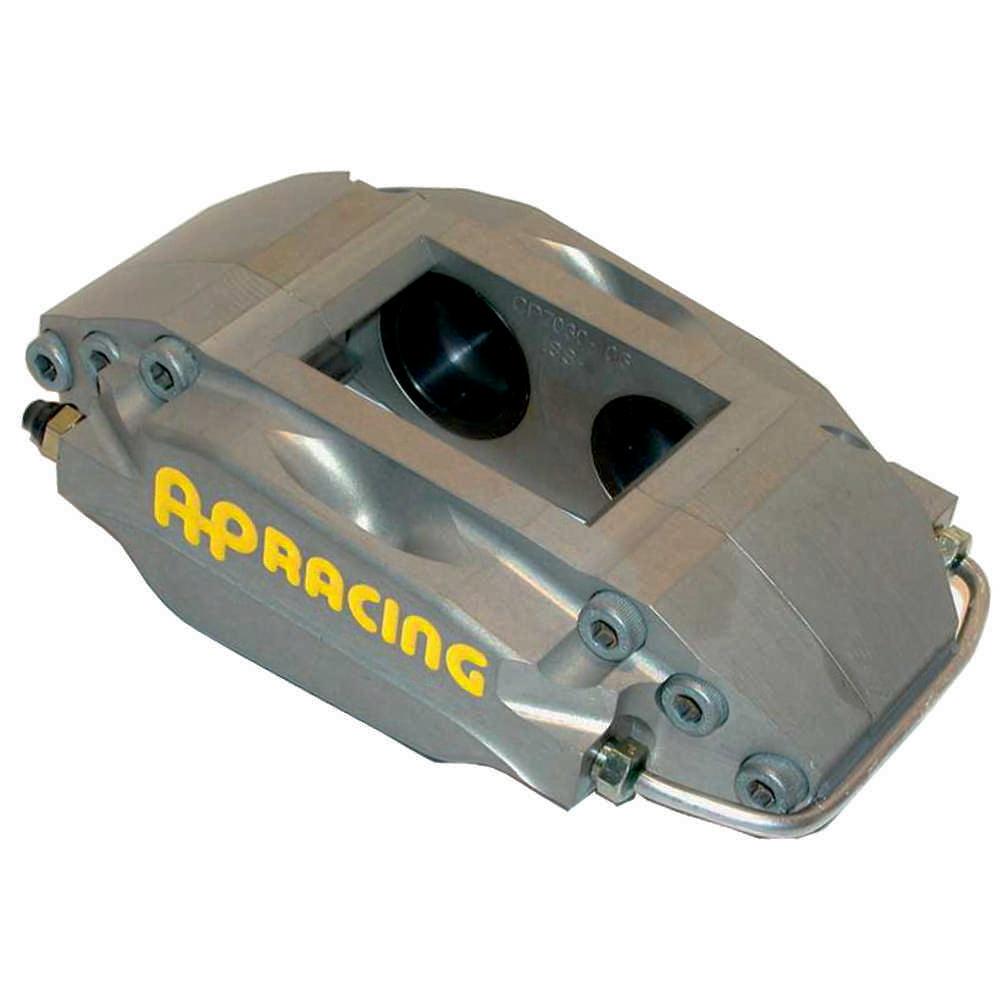

AP Racing CP7030 4-Piston F3 Billet Caliper (Ø278mm Disc)
AP Racing CP7030 4-Piston F3 Billet Caliper (Ø278mm Disc)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A four-piston race caliper from AP Racing for F3, front or rear: a two-piece billet aluminium body, radial mounting on 120mm centres and Ø278mm discs, 16-17mm thick. Sold per caliper with aluminium pistons, right or left hand, trailing or leading.
- 4 pistons (Ø34.9mm x 2, Ø41.3mm x 2), 45.92cm² piston area
- Two-piece billet aluminium body, stainless steel wear plates
- Radial mount, 120mm centres
- Ø278mm discs, 16-17mm thick
- Aluminium pistons
Check before you order
- Priced per caliper: one axle needs a right-hand and a left-hand caliper.
- This is the caliper on its own: discs and mounting brackets are not included.
- Trailing calipers sit behind the axle, leading calipers in front of it: choose the handing that matches where the caliper mounts on your car.
| Part numbers | CP7030-2S0 RHT, -3S0 LHT, -4S0 RHL, -5S0 LHL (aluminium pistons) |
|---|---|
| Range | Formula car range: two-piece billet F3, 4-piston |
| Piston sizes | Ø34.9mm x 2 and Ø41.3mm x 2 |
| Piston area | 45.92cm² |
| Use | F3, front and rear |
| Body | Two-piece aluminium alloy, CNC machined from billet |
| Mounting | Radial, 120mm centres |
| Discs | Ø278mm, 16-17mm thick |
| Mounting offset | 40.0mm |
| Mounting hole | 10.2mm |
| 'PL' dimension | 50.3mm |
| Weight (no pads) | 1.5kg |
| Hydraulic thread | M10x1.0 |
| Bleed screw torque | 17Nm |
| Brake pad | CP3345D38: area 38.7cm², depth 38.0mm, thickness 16.0mm |
| Wear plates | Stainless steel |
| Pistons | Aluminium |
| Seal repair kit | CP4518-GK |
| Spare pistons | Ø34.9mm CP7030-108, Ø41.3mm CP7030-107 |
| Part number 'S0' | S0 in the part number: side feed inlet, no anti-knockback spring |
Fitting notes
- Bleed screws must be at the top.
- The disc must pass the smaller piston first (differential bore calipers).
- AP Racing say brake parts should only be fitted by people experienced in fitting disc brake systems.
- AP Racing: calipers that regularly run at up to 180°C should be re-sealed every other event; from 180°C to 220°C and above, re-seal as soon as possible.
