AP Racing CP6859 Concentric Clutch Slave Cylinder (Push Type)
AP Racing CP6859 Concentric Clutch Slave Cylinder (Push Type)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A concentric clutch slave cylinder, push type, with a lightweight forged aluminium body: hydraulically self-contained, with high temperature seals and low friction coated sealing surfaces. It is supplied with its release bearing, with flat, Ø38, Ø45, Ø50 or Ø54mm fulcrum and an 18mm or 12mm stroke.
- Concentric, hydraulically self-contained, with high temperature seals
- Supplied with a release bearing: flat, Ø38mm, Ø45mm, Ø50mm, Ø54mm fulcrum
- 18mm or 12mm (reduced length) stroke versions
- Aluminium alloy body and piston
- Effective area 920mm²; maximum pressure 8.6N/mm² (1250psi)
Check before you order
- With large diameter gearbox splines, check the spline's clearance in the slave cylinder body and the driven plates' clearance at maximum slave travel: please ask us if you are not sure.

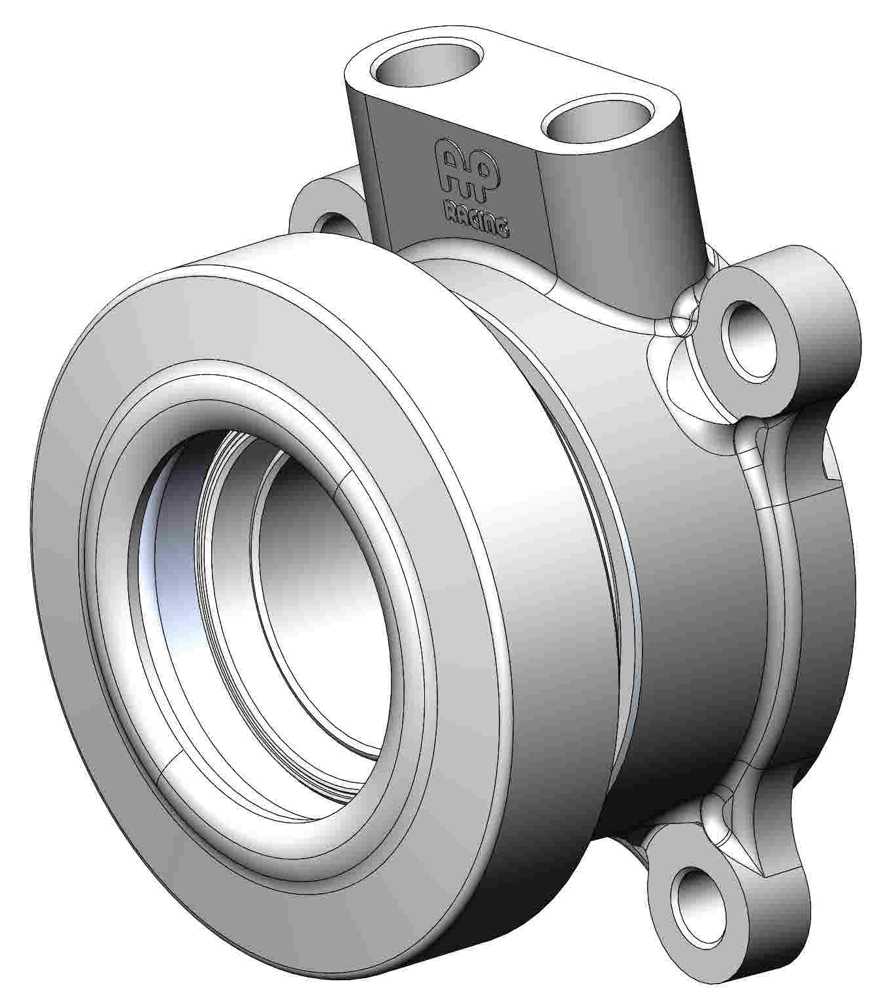

- The picture shows one version.
| Part numbers | CP6859-14, CP6859-38, CP6859-45, CP6859-50, CP6859-54, CP6859-1245, CP6859-1250, CP6859-1254, CP6859-1238-IN, CP6859-1245-IN, CP6859-1250-IN, CP6859-1254-IN |
|---|---|
| Material | Forged aluminium alloy body, aluminium alloy piston |
| Supplied with | A release bearing, in a choice of fulcrum diameters |
| Replaces CP3859 | Takes over from the CP3859 cylinder but is not identical: M10 ports (were M12), port height 44.92mm (was 59.12mm) |
| Effective area | 920mm² |
| Maximum pressure | 8.6N/mm² (1250psi) |
| Hydraulic ports | M10 x 1.0 |
| Weight | 12mm stroke: 257g (outer race rotates), 346g (-IN, inner race rotates) |
| Mineral oil versions | Mineral oil versions: please ask us |
| Seal / fitting kits | Seal kit CP3759-3; -4 / -3 Aeroquip fitting kits CP3759-6 / -5: please ask us |
| Versions | CP6859-14: flat fulcrum, 18mm stroke, inner race rotates, release bearing CP3457-22; CP6859-38: Ø38mm fulcrum, 18mm stroke, inner race rotates, release bearing CP3457-16; CP6859-45: Ø45mm fulcrum, 18mm stroke, outer race rotates, release bearing CP3457-19; CP6859-50: Ø50mm fulcrum, 18mm stroke, inner race rotates, release bearing CP3457-11; CP6859-54: Ø54mm fulcrum, 18mm stroke, inner race rotates, release bearing CP3457-6; CP6859-1245: Ø45mm fulcrum, 12mm stroke, outer race rotates, release bearing CP3457-19; CP6859-1250: Ø50mm fulcrum, 12mm stroke, outer race rotates, release bearing CP3457-9; CP6859-1254: Ø54mm fulcrum, 12mm stroke, outer race rotates, release bearing CP3457-10; CP6859-1238-IN: Ø38mm fulcrum, 12mm stroke, inner race rotates, release bearing CP3457-16; CP6859-1245-IN: Ø45mm fulcrum, 12mm stroke, inner race rotates, release bearing CP3457-26; CP6859-1250-IN: Ø50mm fulcrum, 12mm stroke, inner race rotates, release bearing CP3457-11; CP6859-1254-IN: Ø54mm fulcrum, 12mm stroke, inner race rotates, release bearing CP3457-6 |
Fitting notes
- Fit with the bleed port uppermost, as AP Racing's installation drawing shows
