SKU:CP6278-2S7MP
AP Racing

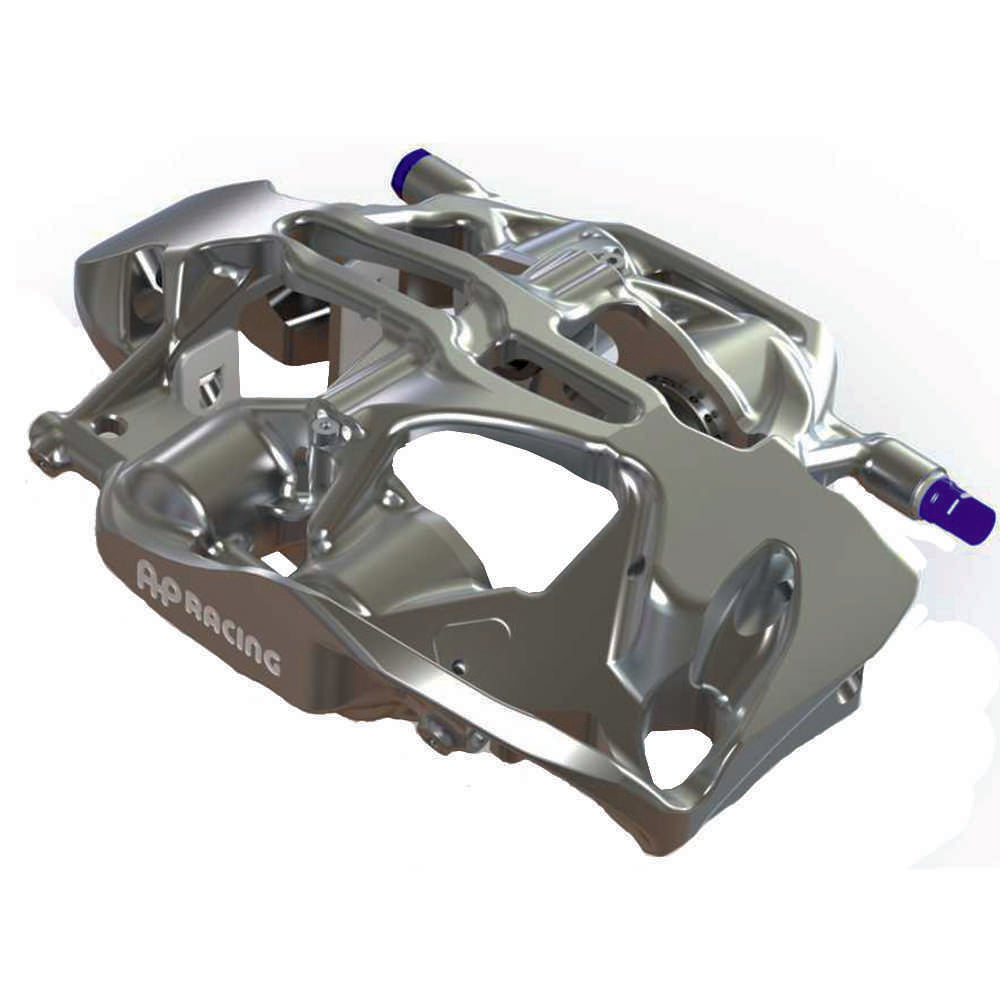

AP Racing CP6278 4-Piston Billet Radi-CAL Rear Caliper (Ø355mm Disc)
AP Racing CP6278 4-Piston Billet Radi-CAL Rear Caliper (Ø355mm Disc)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A four-piston race caliper from AP Racing for GT and endurance rear axles: an anodised billet monobloc aluminium body, radial mounting on 180mm centres and Ø355mm iron (32mm) or carbon (35mm) discs. Sold per caliper with titanium pistons, right or left hand.
- 4 pistons (Ø28.6mm x 2, Ø36.0mm x 2), 33.2cm² piston area
- Anodised billet monobloc aluminium body, Radi-CAL design, ducted air cooling
- Radial mount, 180mm centres
- Ø355mm iron (32mm) or carbon (35mm) discs
- Titanium pistons
Check before you order
- Priced per caliper: one axle needs a right-hand and a left-hand caliper.
- This is the caliper on its own: discs and mounting brackets are not included.
- Trailing calipers only (mounted behind the axle): right-hand (RHT) or left-hand (LHT).
| Part numbers | CP6278-2S7MP RHT, -3S7MP LHT (titanium pistons) |
|---|---|
| Range | GT range: billet Radi-CAL rear, 4-piston |
| Piston sizes | Ø28.6mm x 2 and Ø36.0mm x 2 |
| Piston area | 33.2cm² |
| Use | GT / endurance, rear |
| Body | Billet monobloc aluminium alloy, anodised |
| Mounting | Radial, 180mm centres |
| Discs | Ø355mm; iron 32mm or carbon 35mm thick |
| Mounting offset | 42.0mm |
| Mounting hole | 12.15mm |
| 'PL' dimension | 63.5mm |
| Weight (no pads) | 1.9kg |
| Hydraulic thread | M10x1.0 |
| Bleed screw torque | 17Nm |
| Brake pad (iron) | CP6070D49 (iron): area 61.6cm², depth 49.0mm, thickness 25.0mm |
| Cooling | Ducted air cooling (lower caliper temperatures) |
| Pistons | Titanium (to suit a 25mm thick pad) |
| Seal repair kit | CP4518-DH |
| Spare pistons | Ø28.6mm CP6278-104, Ø36.0mm CP6278-105 |
| Part number 'S7' | S7 in the part number: side feed inlet, 7 lb anti-knockback spring |
Fitting notes
- Bleed screws must be at the top.
- The disc must pass the smaller piston first (differential bore calipers).
- AP Racing say brake parts should only be fitted by people experienced in fitting disc brake systems.
- AP Racing: calipers that regularly run at up to 180°C should be re-sealed every other event; from 180°C to 220°C and above, re-seal as soon as possible.
