SKU:CP6269-2S7L
AP Racing

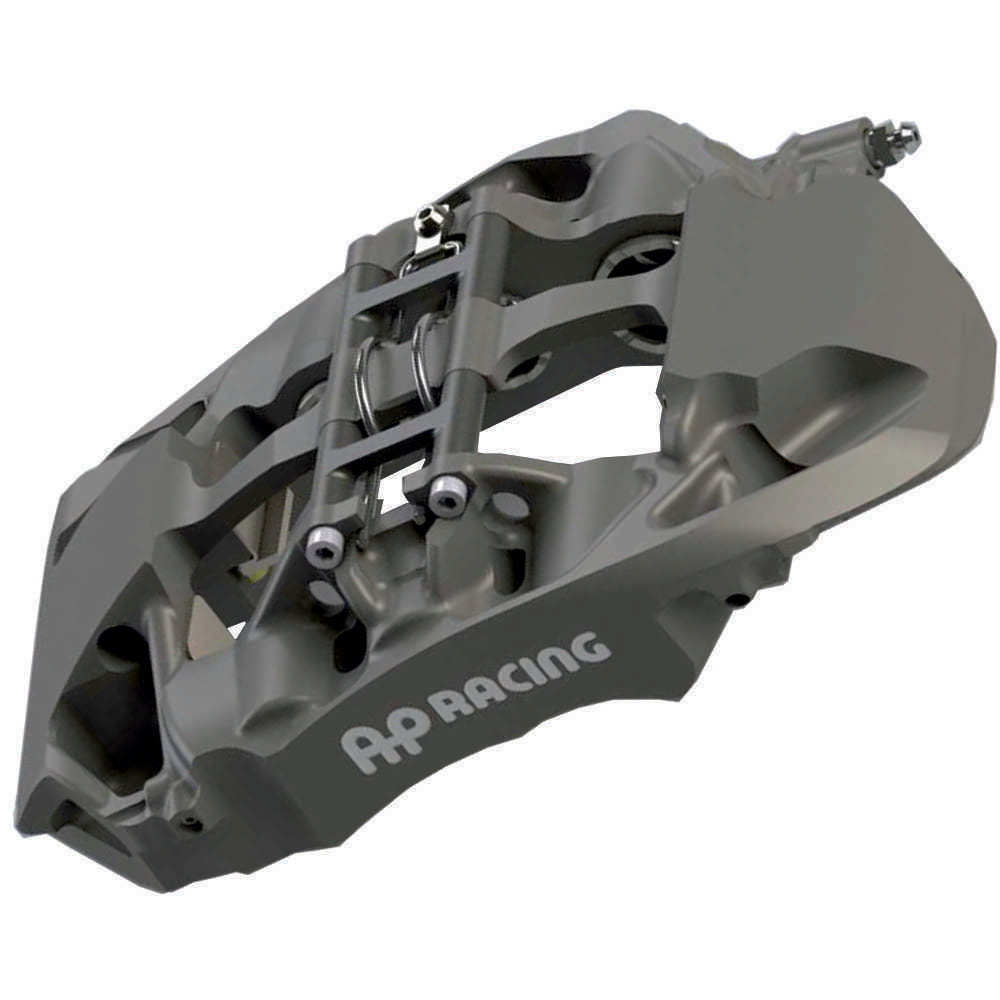

AP Racing CP6269 6-Piston GT3 Forged Radi-CAL Caliper (Ø390mm Disc)
AP Racing CP6269 6-Piston GT3 Forged Radi-CAL Caliper (Ø390mm Disc)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A six-piston race caliper from AP Racing for GT3: a forged monobloc aluminium body, radial mounting on 210mm centres and Ø390mm iron discs, 36mm thick. Sold per caliper with stainless steel pistons, right or left hand, trailing or leading.
- 6 pistons (Ø31.8mm, Ø33.8mm and Ø41.3mm), 60.75cm² piston area
- Forged monobloc aluminium body, Radi-CAL design, ducted air cooling
- Radial mount, 210mm centres
- Ø390mm iron discs, 36mm thick
- Stainless steel pistons
Check before you order
- Priced per caliper: one axle needs a right-hand and a left-hand caliper.
- This is the caliper on its own: discs and mounting brackets are not included.
- Trailing calipers sit behind the axle, leading calipers in front of it: choose the handing that matches where the caliper mounts on your car.
| Part numbers | CP6269-2S7L RHT, -3S7L LHT, -4S7L RHL, -5S7L LHL (stainless steel pistons) |
|---|---|
| Range | GT range: GT3 forged Radi-CAL, 6-piston |
| Piston sizes | Ø31.8mm, Ø33.8mm and Ø41.3mm |
| Piston area | 60.75cm² |
| Use | GT3 |
| Body | Forged monobloc aluminium alloy |
| Mounting | Radial, 210mm centres |
| Discs | Ø390mm iron disc, 36mm thick |
| Mounting offset | 42.0mm |
| Total stack thickness | 95.6mm |
| Mounting hole | 12.15mm |
| 'PL' dimension | 63.5mm |
| Weight (no pads) | 3.3kg |
| Hydraulic thread | M10x1.0 |
| Bleed screw torque | 17Nm |
| Brake pad (iron) | CP6210D54 (iron discs): area 83.0cm², depth 54.0mm, thickness 30.0mm |
| Cooling | Ducted air cooling (lower caliper temperatures) |
| Pad retainer | Bolted pad retainer, quick-release spring clip supplied |
| Pistons | Stainless steel |
| Seal repair kit | CP8518-EFK |
| Spare pistons | Ø31.8mm CP6268-104, Ø33.8mm CP6268-105, Ø41.3mm CP6268-106 |
| Part number 'S7' | S7 in the part number: side feed inlet, 7 lb anti-knockback spring |
Fitting notes
- Bleed screws must be at the top.
- The disc must pass the smaller piston first (differential bore calipers).
- AP Racing say brake parts should only be fitted by people experienced in fitting disc brake systems.
- AP Racing: calipers that regularly run at up to 180°C should be re-sealed every other event; from 180°C to 220°C and above, re-seal as soon as possible.
