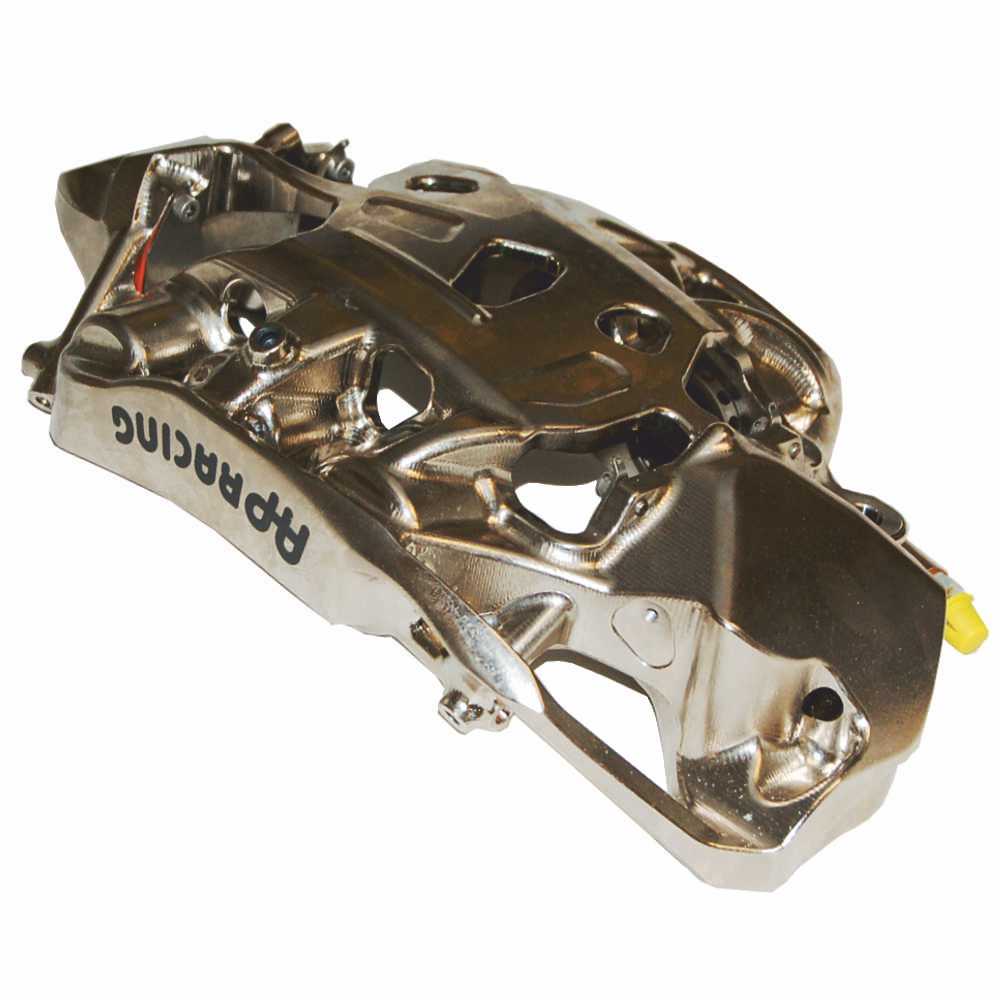

AP Racing CP6169 6-Piston Slimmed Radi-CAL Caliper (Ø378mm Carbon Disc)
AP Racing CP6169 6-Piston Slimmed Radi-CAL Caliper (Ø378mm Carbon Disc)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A six-piston race caliper from AP Racing for GT and endurance classes: a nickel-plated monobloc aluminium body, radial mounting on 210mm centres and Ø378mm carbon discs, 32mm thick. Sold per caliper with titanium pistons, right or left hand.
- 6 pistons (Ø27.0mm, Ø31.8mm and Ø38.1mm, two of each), 50.1cm² piston area
- Nickel-plated monobloc aluminium body, Radi-CAL design, ducted air cooling
- Radial mount, 210mm centres
- Ø378mm carbon discs, 32mm thick
- Titanium pistons
Check before you order
- Priced per caliper: one axle needs a right-hand and a left-hand caliper.
- This is the caliper on its own: discs and mounting brackets are not included.
- Leading calipers only (mounted in front of the axle): right-hand (RHL) or left-hand (LHL).
| Part numbers | CP6169-16S7M RHL, -17S7M LHL (domed titanium pistons) |
|---|---|
| Range | GT range: slimmed Radi-CAL, 6-piston |
| Piston sizes | Ø27.0mm, Ø31.8mm and Ø38.1mm, two of each |
| Piston area | 50.1cm² |
| Included | Dry breaks fitted |
| Use | All GT / endurance classes |
| Body | Monobloc aluminium alloy, nickel plated |
| Mounting | Radial, 210mm centres |
| Discs | Ø378mm carbon disc, 32mm thick |
| Mounting offset | 42.0mm |
| Total stack thickness | 76mm (carbon narrow stack), 22mm carbon pad |
| Mounting hole | 12.15mm |
| 'PL' dimension | 63.5mm |
| Weight (no pads) | 1.95kg |
| Hydraulic thread | M10x1.0 |
| Bleed screw torque | 17Nm |
| Brake pad (carbon) | CP6169 carbon pad: area 80.5cm², depth 53.0mm, thickness 22.0mm |
| Cooling | Ducted air cooling (lower caliper temperatures) |
| Pistons | Titanium (domed) |
| Seal repair kit | CP4518-CEJ |
| Spare pistons | Ø27.0mm CP6169-108, Ø31.8mm CP4969-139, Ø38.1mm CP6169-106 |
| Part number 'S7' | S7 in the part number: side feed inlet, 7 lb anti-knockback spring |
Fitting notes
- Bleed screws must be at the top.
- The disc must pass the smaller piston first (differential bore calipers).
- AP Racing say brake parts should only be fitted by people experienced in fitting disc brake systems.
- AP Racing: calipers that regularly run at up to 180°C should be re-sealed every other event; from 180°C to 220°C and above, re-seal as soon as possible.
