SKU:CP6078-4S7MPD
AP Racing

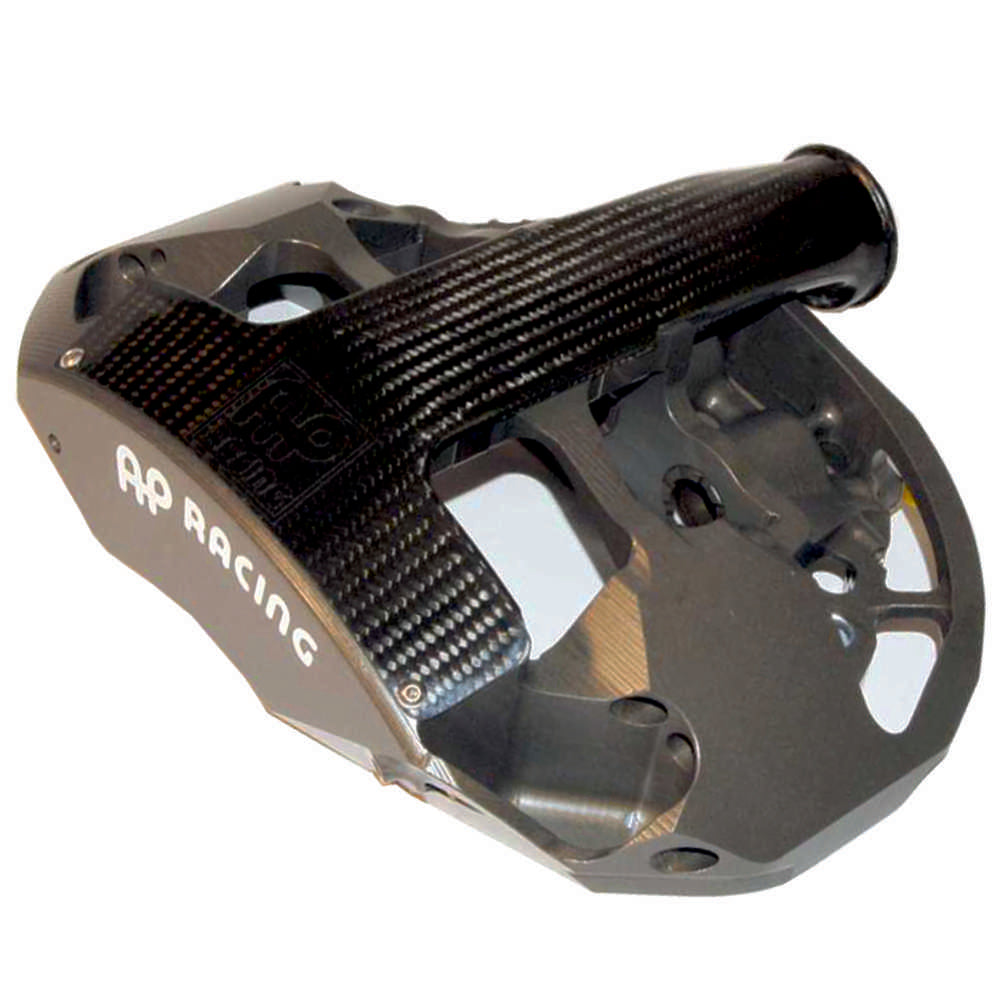

AP Racing CP6078 6-Piston Radi-CAL GT Race Caliper (Ø355mm Disc)
AP Racing CP6078 6-Piston Radi-CAL GT Race Caliper (Ø355mm Disc)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A six-piston race caliper from AP Racing for GT cars, front or rear: a monobloc aluminium body, radial mounting on 210mm centres and Ø355mm iron (36mm) or carbon (35mm) discs. Sold per caliper with titanium pistons, right or left hand.
- 6 pistons (Ø27.0mm, Ø31.8mm and Ø38.1mm, two of each), 50.1cm² piston area
- Monobloc aluminium body, Radi-CAL design, ducted air cooling
- Radial mount, 210mm centres
- Ø355mm iron (36mm) or carbon (35mm) discs
- Titanium pistons
Check before you order
- Priced per caliper: one axle needs a right-hand and a left-hand caliper.
- This is the caliper on its own: discs and mounting brackets are not included.
| Part numbers | CP6078-4S7MPD RH, -5S7MPD LH (titanium pistons) |
|---|---|
| Range | GT range: Radi-CAL, 6-piston (Ø27.0 / 31.8 / 38.1mm bores) |
| Piston sizes | Ø27.0mm, Ø31.8mm and Ø38.1mm, two of each |
| Piston area | 50.1cm² |
| Included | Carbon ducts and dry breaks fitted |
| Use | GT cars, front and rear |
| Body | Monobloc aluminium alloy |
| Mounting | Radial, 210mm centres |
| Discs | Ø355mm; iron 36mm or carbon 35mm thick |
| Mounting offset | 42.0mm |
| Mounting hole | 12.15mm |
| 'PL' dimension | 63.5mm |
| Weight (no pads) | 2.25kg |
| Hydraulic thread | M10x1.0 |
| Brake pad (iron discs) | CP3558D54 (iron discs): area 77.4cm², depth 54.0mm, thickness 25.0mm |
| Brake pad (carbon discs) | CP4240 (carbon discs): area 78.12cm², depth 54.0mm, thickness 25.0mm |
| Cooling | Ducted air cooling (lower caliper temperatures) |
| Pistons | Titanium |
| Seal repair kit | CP4518-CEJ |
| Spare pistons | Ø27.0mm CP6055-110, Ø31.8mm CP6055-111, Ø38.1mm CP6055-112 |
| Part number 'S7' | S7 in the part number: side feed inlet, 7 lb anti-knockback spring |
Fitting notes
- Bleed screws must be at the top.
- The disc must pass the smaller piston first (differential bore calipers).
- AP Racing say brake parts should only be fitted by people experienced in fitting disc brake systems.
- AP Racing: calipers that regularly run at up to 180°C should be re-sealed every other event; from 180°C to 220°C and above, re-seal as soon as possible.
