SKU:CP5555-802S4
AP Racing

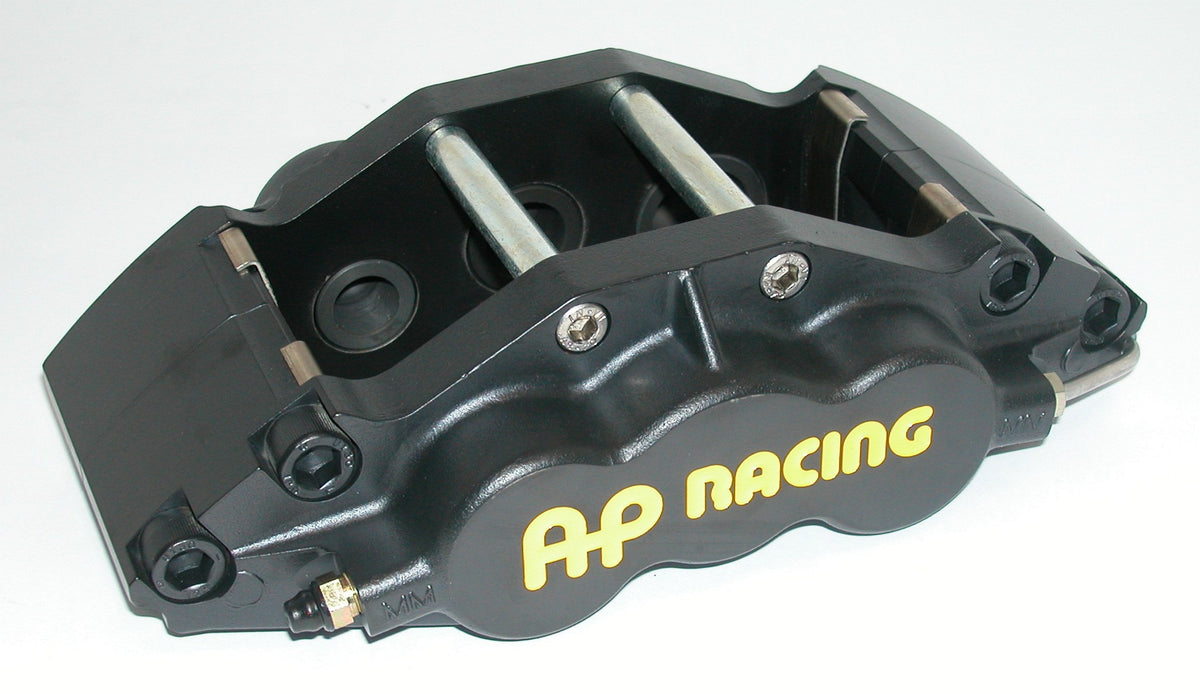

AP Racing CP5555 6-Piston Caliper (Ø362mm Disc)
AP Racing CP5555 6-Piston Caliper (Ø362mm Disc)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
A six-piston 152mm-centre caliper from AP Racing for performance road cars (front): a cast two-piece aluminium body with aluminium pistons, radial mounting on 152mm centres and Ø362mm discs, 36mm or 32mm thick. Sold per caliper in black or red, right or left hand, trailing or leading.
- 6 pistons (Ø27.0mm, Ø31.8mm and Ø38.1mm, two of each), 50.1cm² piston area
- Cast two-piece aluminium body, aluminium pistons, steel wear plates
- Radial mount, 152mm centres
- Ø362mm discs, 36mm or 32mm thick
- Black or red paint finish
Check before you order
- Priced per caliper: one axle needs a right-hand and a left-hand caliper.
- This is the caliper on its own: discs and mounting brackets are not included.
- Trailing calipers sit behind the axle, leading calipers in front of it: choose the handing that matches where the caliper mounts on your car.
| Part numbers | black CP5555-802S4 RHT, -803S4 LHT, -804S4 RHL, -805S4 LHL (36mm discs); black CP5555-814ABK2 RHT, -815ABK2 LHT, -816ABK2 RHL, -817ABK2 LHL and red -814AR38 to -817AR38 (32mm discs) |
|---|---|
| Range | CP5555 family, 152mm mounting centres, 6-piston |
| Piston sizes | Ø27.0mm, Ø31.8mm and Ø38.1mm, two of each |
| Piston area | 50.1cm² |
| Use | Performance road, front; AP Racing factory brake kits |
| Body | Cast two-piece aluminium alloy |
| Pistons | Aluminium alloy |
| Mounting | Radial, 152mm centres |
| Discs | Ø362mm, 32mm or 36mm thick |
| Disc thickness by part number | CP5555-802 to -805: 36mm; CP5555-814 to -817: 32mm |
| Mounting offset | 55.0mm (36mm disc) / 53.2mm (32mm disc) |
| Mounting hole | 12.1mm |
| 'PL' dimension | 62.5mm |
| Weight (no pads) | 2.8kg |
| Hydraulic thread | M10x1.0 |
| Bleed screw torque | 17Nm |
| Brake pad | CP3894D54: area 76.3cm², depth 54.0mm, thickness 18.0mm |
| Seals | Piston dirt seals |
| Wear plates | Steel |
| Pad clip | Pad anti-rattle clip fitted |
| Paint finish | Black or red |
| Seal repair kit | CP4519-CEJ |
| Spare pistons | Ø27mm CP5555-108, Ø31.8mm 3650-107, Ø38.1mm CP2409-124 |
| Part number 'S4' | S4 in the part number: side feed inlet, 4 lb anti-knockback spring |
Fitting notes
- Bleed screws must be at the top.
- The disc must pass the smaller piston first (differential bore calipers).
- AP Racing say brake parts should only be fitted by people experienced in fitting disc brake systems.
