SKU:CP3945-230
AP Racing
AP Racing CP3945 Heavy Duty Air Jack, 54mm Bore, 675kg Lift
AP Racing CP3945 Heavy Duty Air Jack, 54mm Bore, 675kg Lift
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Description
The heavy duty version of AP Racing's CP3985 air jack: the same dimensions with a larger ram section for strength (30-40 grams heavier) and a stainless steel foot. A 54mm bore lifts 675kg at 30 bar, and the compression return spring makes it faster and more efficient in operation. Choose a 230mm or 310mm stroke, with or without a built-in exhaust valve.
- Larger ram section for strength, 30-40 grams heavier than CP3985
- 675kg lift per jack at 30 bar, 54mm bore
- 230mm or 310mm stroke, each with its own prop (CP3985-23 or -31)
- Optional exhaust valve with an adjustable collar to set the speed of descent
- Stainless steel foot, M14 x 1.5 inlet, two adjustable mounting rings
Check before you order
- Never work under a car held up only by air jacks unless props are fitted.
- Do not exceed AP Racing's recommended operating pressure of 30 bar.
- Props are sold separately: CP3985-15 for 150mm, CP3985-23 for 230mm and CP3985-31 for 310mm jacks.

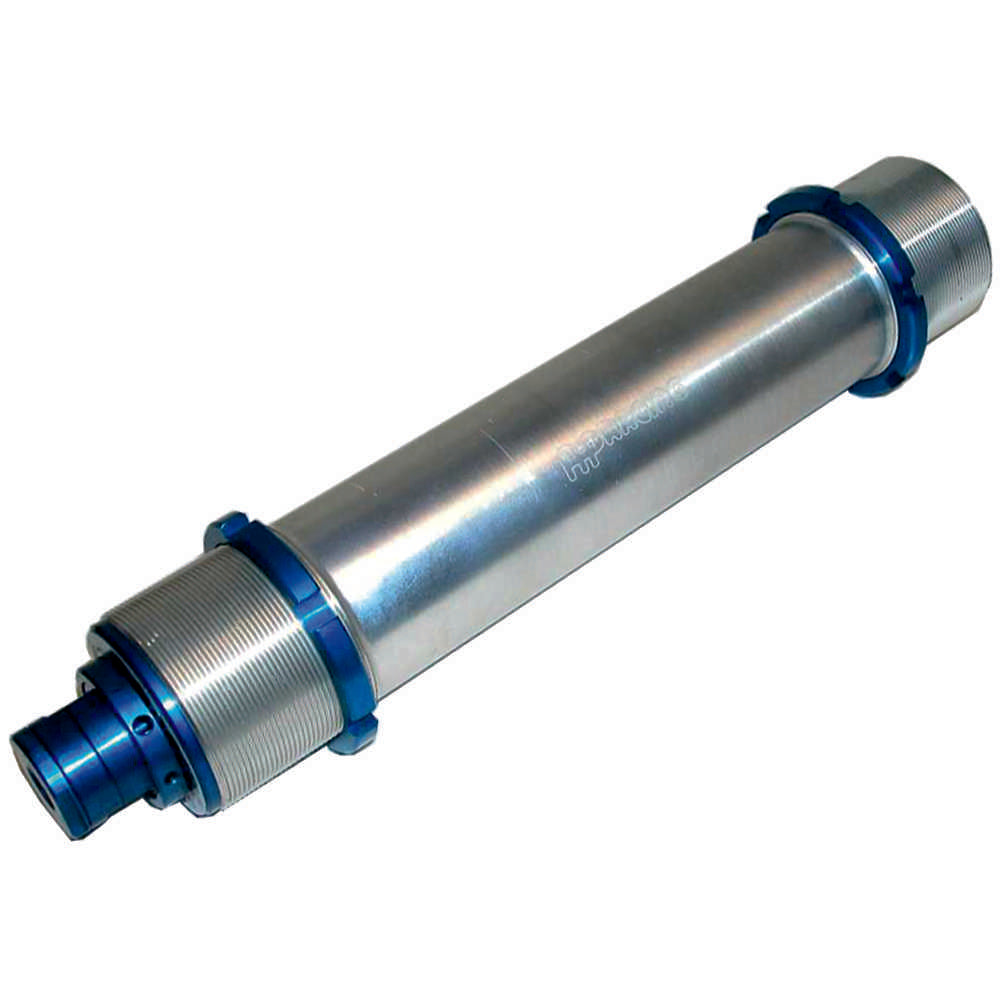

- The photo shows one version: the versions differ in stroke and exhaust valve.
| Part numbers | CP3945-230 (230mm / Without); CP3945-230EV (230mm / With (EV)); CP3945-310 (310mm / Without); CP3945-310EV (310mm / With (EV)) |
|---|---|
| Foot | Stainless steel |
| Lift / pressure / bore | 675kg lift per jack, 30 bar maximum operating pressure, 54.0mm bore, M14 x 1.5 inlet (internal thread) |
| Versions (weight, height, prop) | 230mm: 1.28kg, height 325mm (with exhaust valve 1.33kg, 356.5mm), prop CP3985-23; 310mm: 1.60kg, 425mm (with exhaust valve 1.62kg on AP Racing's page, 1.65kg in their catalogue, 456.5mm), prop CP3985-31 |
| Exhaust valve (EV) | Optional built-in exhaust valve, which can be throttled to adjust the speed of descent; its collar over the exhaust ports adjusts the air flow |
| Mounting rings | Two adjustable mounting rings on the threaded body |
| Earlier jacks | The CP3985 and CP3945 families replace AP Racing's CP2985 jacks, which are no longer available |
| Heavy duty version | CP3945 heavy duty: the same dimensions as CP3985 with a larger ram section, about 30-40g heavier, and a stainless steel foot |
| Repair kits | CP3985-1RK for jacks with an exhaust valve, CP3985-11RK for jacks without |
Fitting notes
- Jacks must be vertical in use, with brackets or clamps on the threaded section of the body only.
- Do not use U-bolt type clamps: distorting the body will make the jack stick.
- Do not loosen or remove the inlet adaptor.
- Never clean with petrol or paraffin (they damage the rubber seals): use an alcohol-based fluid such as methylated spirit, and only silicone spray or grease inside.
